Single/three-phase active/reactive meter calibration
Three-phase active/reactive KWh meter calibration
Able to measure current, voltage, frequency, phase, power, energy
Harmonic analysis
CT & PT ratio & secondary load measurement
Able to recognize 96 kinds of wrong connections of 3P4W & 98 kinds of wrong connections of 3P3W
Apply in the electric power & inspection department
Colorful LCD: 6.4 inch, resolution 640X480

Auto switching available to choose from voltage measuring range and current measuring range, and all the energy constants of the measuring range can remains;
Available to display the measurement data and waveform of three voltage and three current; and able to analyse harmonic within 21 orders.
Able to identify these frequently faced wrong connections as 3-phase & 3wire (48 types), and 3-phase & 4 wire(96 types), and display hexagon diagram of optional connection;
Error correction function is provided to help user do error calibration, parameter measurement data will make correction;
Built-in industrial computer is adopted to control the device plus with the ports convenient for function extension, user-friendly interface style and rich content ;
Auto/Manual calibration for energy meter based on single phase, 3-phase & 3wire, 3-phase & 4-wire active, 3-phase & 4-wire reactive inductive and 3-phase & 4-wire activeelectronic(able to receive the pulse of electronic energy meter); utilizing antitheses method to calibrate voltage, current, power, power factor, phase and frequency for electrotechnical instruments and transducers;
Able to create a new file or open the existed on-site library file, and delete or inquire the record of library files;
Data tranmission by U disk; Convenient software updating through LAN or U disk

More products KINGSINE

PROTECTIVE RELAYS TEST SET KINGSINE K30/ K30L

• Unique self-protection system
• Unique power switch and amplifier technology
• Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph

THREE-PHASE AC/DC HARMONIC POWER SOURCE 750V/ 25A KINGSINE KS813

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• 0.05 Accuracy KS813
• 0.1 Accuracy KS813B

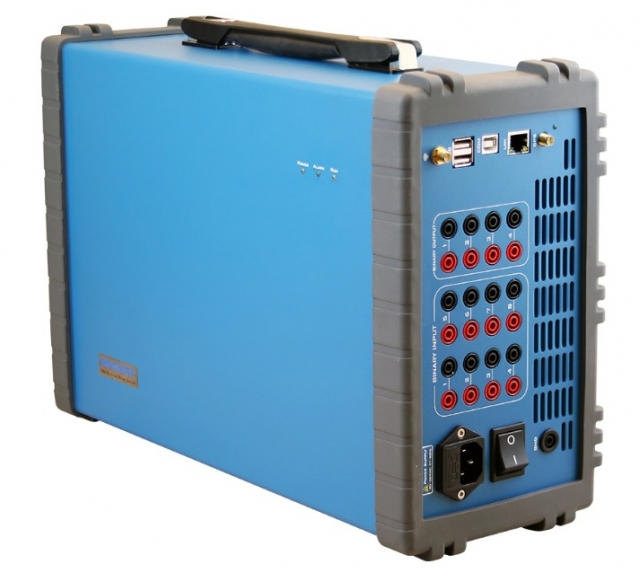

KINGSINE KF85P RELAY PROTECTION TESTER

• 6x35A@425VA max & 6x310V@105VA max analog outputs.
• 10kg weight, easy carry on flight journey.
• Low-level signals output, energy meter testing, transducer calibration and IEC61850 testing capability for optional.

CT/PT CURRENT TRANSFORMER ANALYZER WITH VOLT-AMPER CHARACTERISTIC AND TURN-RATIO TESTING KINGSINE KT200

• modularization design and plug-in frame
• TFT LCD display screen with clear and beautiful software interface design
• AC/DC current input for wide range
• up to 30kV transformer
• PT Test

THREE-PHASE AC/DC POWER SOURCE & METER CALIBRATOR KINGSINE KS833/ KS833B

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Indicating Meter Test
• Transducer Calibration
• Energy Meter Calibration
• 0.05 Accuracy KS833
• 0.1 Accuracy KS833B

PORTABLE PROTECTION RELAY TEST SET KINGSINE K68/ K68I

• All-in-one design relay tester with 6.4 inches LCD display
• 4 Phase AC Voltage Source and 3 phase AC current source
• Range, Phase, Frequency can be set independently
• Max AC voltage can reach 300V each phase

THREE-PHASE AC HARMONIC POWER SOURCE 0.05 CLASS 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05

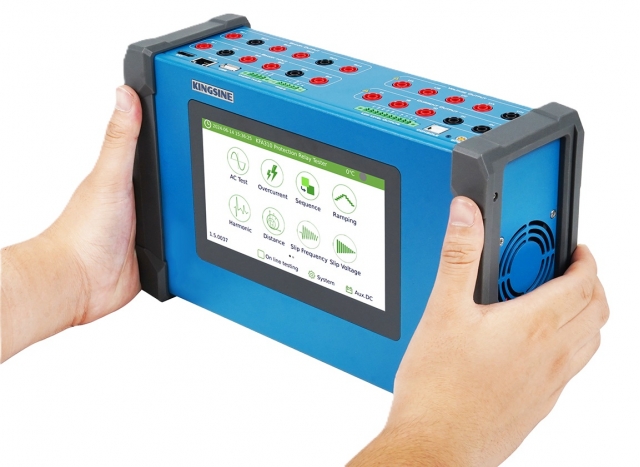

KINGSINE KFA310 PORTABLE HANDHELD PROTECTION RELAY TESTER 203091

• High-power, High-precision, Multi-functional
• weighs only 3.7 kg
• offers 4x300V and 3x20A outputs
• maximum current can reach 50A
• the output power reaches 130VA

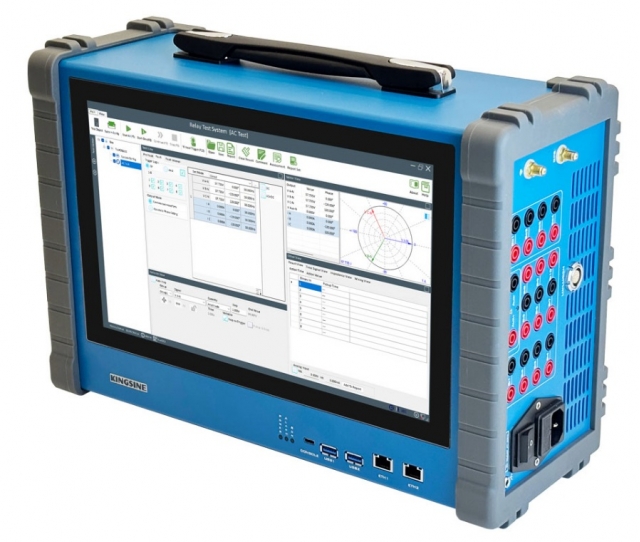

KINGSINE KF86P UNIVERSAL PORTABLE RELAY TESTER

• 6x35A@425VA max & 6x310V@105VA max analog outputs.
• 10kg weight, easy carry on flight journey.
• Low-level signals output, energy meter testing, transducer calibration, and IEC61850 testing capability for optional
• 8x100/1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations
• Inbuilt GPS and IRIG-B synchronized end-to-end testing capability

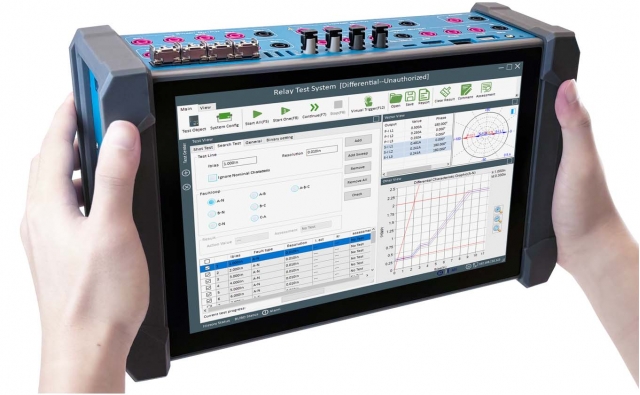

KINGSINE KFA320 PORTABLE PROTECTION RELAY TEST SET ACCORDING IEC61850
