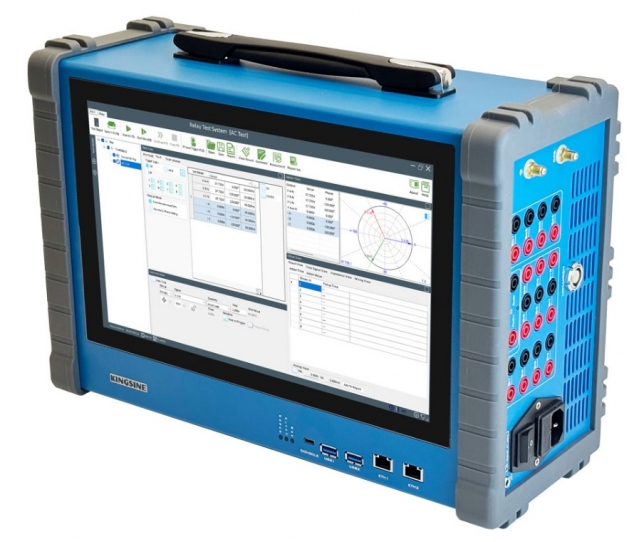

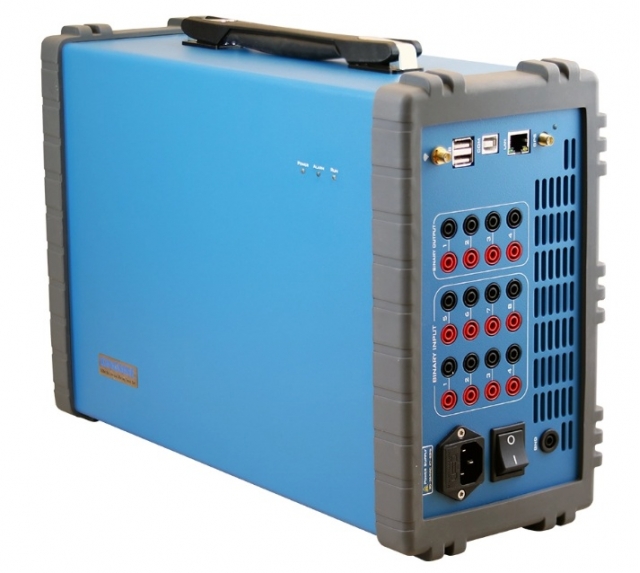

KINGSINE KF86P Universal Portable Relay Tester

Code: KF86P KF-86P 203112



Datasheet PDF, 4.01 Mb


Description

KINGSINE KF86P Universal Relay Test Set
Item No.: 203112

Available models:
KF86P(4U3I) (3 x 35A / 1 x 70A, 4 x 310V)
KF86P(4U6I) (6 x 35A / 3 x 70A, 4 x 310V)
KF86P(6U6I) (6 x 35A / 3 x 70A, 6 x 310V)

The world's lightest & high power secondary injection test kit for universal substation testing.

●  6x35A@425VA max & 6x310V@105VA max analog outputs.

●  10kg weight, easy carry on flight journey.

●  Low-level signals output, energy meter testing, transducer calibration, and IEC61850 testing capability for optional.

Basic Functions

  • The Kingsine KF86P universal relay test kit marks a multipurpose, light-weight, field portable secondary injection test kit.  It is capable of testing a wide variety of electro-mechanical, solid state, and microprocessor based protective relays, motor overload relays, IEC61850 testing, and similar protective devices.
  • 12 Analog Channels outputs, 6x35A & 6x310V, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
  • Lightweight, <10kg, easy carry on flight journey
  • The unit can be operated either manually via built-in 13.3" touchscreen and keypad, or placed under full computer control via the KRT software, running on a PC.
  • Variable battery simulator, 24~350Vdc, 70Watts max output. Easily supply power for most protection devices.
  • Fully function KRT software for test management, graphical test modules, template organized, Xrio/Rio import/export, testing result review, auto result assessment and report generate, etc.
  • Transient play back up to 3KHz
  • 8x100/1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations
  • Inbuilt GPS and IRIG-B synchronized end-to-end testing capability
  • 10 binary input, dry contacts or 0-300V potential contacts capability; 4 fast binary outputs isolated each and with <1ms response time.
  • Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection
  • AC 85~265 / DC 127-350 power supply, World wide range power supply compatibility
  • 3-Year free warranty and life-long maintenance
  • Free software upgrade



Learn more about the testing software designed for user-friendliness, multifunctional, and cost-effectiveness.



Advance Feature

  • Complied IEC61850 edition 1.0 & 2.0 standard
  • Transducer calibration
  • Energy meter calibration (Mechanical & Electronic meters)
  • 10 Low-level analog outputs (8 Voltages + 2 Currents) up to 8V/20mA max.



Key Points
  • Innovative "Plug and Play" After-sales Service Advantages：
  • Simple structure, beginners can achieve independent installation.
  • Reduced after-sales costs.
  • Shortened after-sales time.

Goal: Complete after-sales within 20 working days.



As a highly flexible solution for protection relay testing, the Kingsine KF86P universal relay test kit utilizes innovative technology, module design, and a simple internal structure, ensuring a higher level of product quality and providing assurance for a three-year warranty commitment. Besides, this secondary injection kit also contributes to achieving the quality objective of a 15-year product service life. For after-sales maintenance, only module replacement is required, and there is no need for accuracy calibration after module replacement. Once assembly is complete, it can be used directly, truly achieving "Plug and Play".

Type of Relays Can Be Tested


Items   ANSI® No.
IEC61850 numerical IEDs relay & merge unit
Distance protection relay21
Synchronising or synchronism-check relays25
Undervoltage relays27
Directional Power relays32
Undercurrent or underpower relays37
Negative sequence overcurrent relays46
Overcurrent/ground fault relays50
Inverse time overcurrent/ground fault relays51
Power factor relays55
Overvoltage relays59
Voltage or current balance relays60
Directional overcurrent relays67
Directional ground fault relays67N
DC overcurrent relays76
Phase-angle measuring or out-of-step protection relays        78
Automatic reclosing devices79
Frequency relays81
Motor overload protection relays86
Differential protection relays87
Directional voltage relays91
Voltage and power directional relays92
Tripping relays94
Voltage regulating relays
Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays



Presenation video KINGSINE KF86P









More products KINGSINE

PORTABLE PROTECTION RELAY TEST SET KINGSINE K68/ K68I

• All-in-one design relay tester with 6.4 inches LCD display
• 4 Phase AC Voltage Source and 3 phase AC current source
• Range, Phase, Frequency can be set independently
• Max AC voltage can reach 300V each phase


THREE-PHASE AC/DC POWER SOURCE & METER CALIBRATOR KINGSINE KS833/ KS833B

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Indicating Meter Test
• Transducer Calibration
• Energy Meter Calibration
• 0.05 Accuracy KS833
• 0.1 Accuracy KS833B


KINGSINE KF86P UNIVERSAL PORTABLE RELAY TESTER

• 6x35A@425VA max & 6x310V@105VA max analog outputs.
• 10kg weight, easy carry on flight journey.
• Low-level signals output, energy meter testing, transducer calibration, and IEC61850 testing capability for optional
• 8x100/1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations
• Inbuilt GPS and IRIG-B synchronized end-to-end testing capability


PROTECTIVE RELAYS TEST SET KINGSINE K30/ K30L

• Unique self-protection system
• Unique power switch and amplifier technology
• Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph

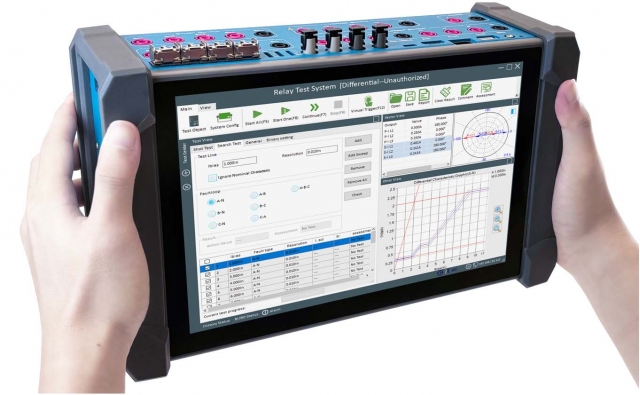

KINGSINE KFA320 PORTABLE PROTECTION RELAY TEST SET ACCORDING IEC61850

• offers 4x300V and 6x20A outputs
• Its maximum current can reach 60A, and the output power reaches 200VA/Phase
• supports IEC61850 SV/GOOSE, LPIT simulation, energy meter testing, low-level output, and transducer calibration
• The world's smallest relay tester with 10.1-inch LED touch screen, easy to carry in a iPad size, 3.8kg
• Fiber port for IEC61850 SMV and GOOSE simulations

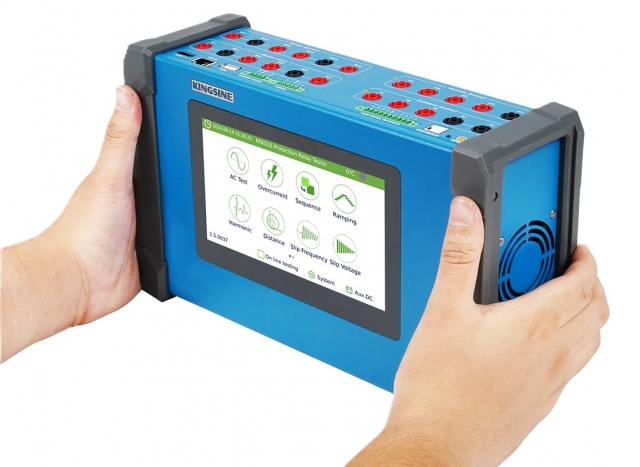

KINGSINE KFA310 PORTABLE HANDHELD PROTECTION RELAY TESTER 203091
