Automatic Thread Inspection Machine TCM

Code: TCM




Datasheet PDF, 0.83 Mb

Description

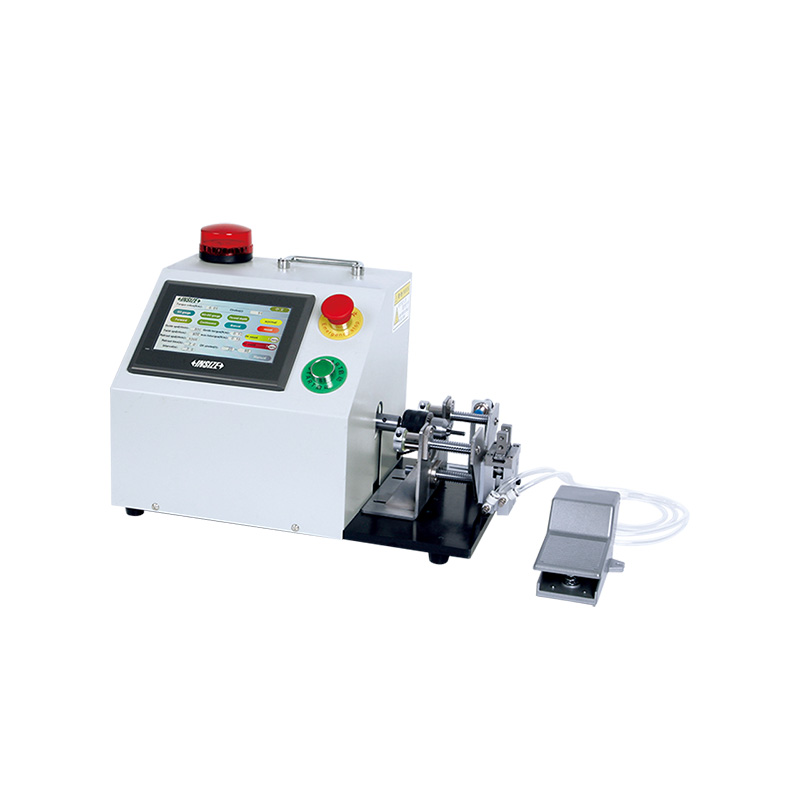

Automatic Thread Inspection Machine
Code: TCM

  • For inspection of GO, NO-GO and depth of threads
  • Can be for repair of thread defects
  • Real-time display of torque, circles, OK and NG counts
  • If NG thread is detected, audible and visual alarm are activated and the motor is automatically reversed to exit the thread gauge
  • Different thread gauges and workpiece fixtures can be replaced
  • For different length of thread by adjusting the induction switch
  • Thread gauges with DLC coating, excellent wear resistance
  • Optional accessory: thread plug gauges, thread ring gauges thread gauge fixtures, custom-made workpiece fixtures, foot switch (code TCM-01)

Code:  TCM
Range:  thread: M1~M30
Torque range:  guide torque: 0~1.27N.m, max. torque: 0~1.27N.m


Video:





More products INSIZE3

STEEL GAUGE BLOCK SETS 4100

• Made of alloy steel
• Meet ISO3650
• Gauge blocks ≥125mm have clamping holes



DIGITAL MEASURING MICROSCOPE 5318-MD60

• 1080P high-definition image
• Built-in software without computer, operated by mouse
• Take pictures, save to USB flash disk



AUTOMATIC VISION INSPECTION MACHINE AVIM

• For testing fasteners, mobile phone parts, plastical products, electronic components and special-shaped hardware, etc.

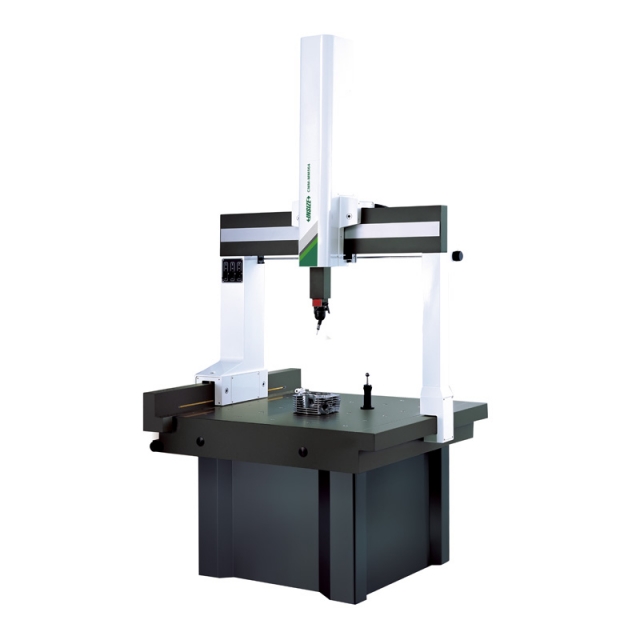

COORDINATE MEASURING MACHINE (MANUAL) CMM-MM564
