Kit-uri instalare, service, mentenanta fibra optica Shineway FTTx TestPro

Cod: Shineway FTTx TestPro




Brosura produs PDF, 0.77 Mb

Descriere

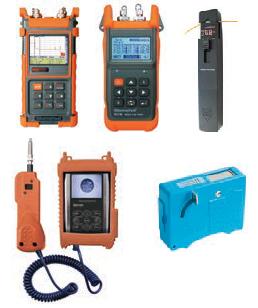

FTTx TestPro TK-FTP-102 Installation Stage-Enhanced Tool Kit

  • palmOTDR-S20C/P OTDR
  • OLT-50P Intelligent Optical Loss Tester
  • OFI-20A Optical Fiber Identifier
  • CLK Cleaning Swab
  • CLN-10 Optical Fiber Conector Cleaning
  • OCI-20B Optical Connector Inspector



FTTx TestPro TK-FTP-202 Service Activation Stage-Enhanced Tool Kit

  • palmOTDR-S20C/X OTDR
  • PPM-30 PON Power Meter
  • OFI-20A Optical Fiber Identifier
  • CLK Cleaning Swab
  • CLN-10 Optical Fiber Conector Cleaning
  • OCI-20B Optical Connector Inspector



FTTx TestPro TK-FTP-302 Maintenance Stage-Enhanced Tool Kit

  • palmOTDR-S16C/N OTDR
  • PPM-30 PON Power Meter
  • OFI-20A Optical Fiber Identifier
  • CLK Cleaning Swab
  • CLN-10 Optical Fiber Conector Cleaning
  • OCI-20B Optical Connector Inspector
