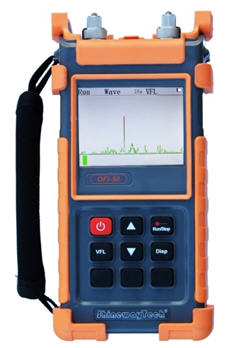

Shineway OFI-50A Cable Identifier

Cod: Shineway OFI-50A




Brosura produs PDF, 0.11 Mb

Descriere

OFI½50A uses optical fiber sensing principle to confirm the target fiber; It can quickly identify deep buried, overhead and pipe fiber cable without any destroy, and provide a simple method for maintenance personnel. Users only need gently knock on cable, when knocking to the target cable, OFI-50 can clearly hear the knock from earphone, which can accurately identify the target cable. OFI½50A is real one-key type test; handheld design, easy to carry, 3.5' color screen real-time waveform; the software of the intelligent struck the judgment of the two operation / display mode, combined with the Headset real-time audio, with 3 kinds of recognition percussion method, so as to quickly and accurately identify the measured cable. OFI-50A is a kind of ideal tool for optical fiber



Features:

  • Easy to use, reliable
  • Fast identification of deep buried, overhead and pipe fiber cable
  • Built-in intelligent mode, knock in the measured cable screen showed positive and negative Pyramid strength; output the notification sound
  • Rapid and accurate identification
  • Click the targeted or wanted cable, OFI-50A can response with sound and light reaction
  • According to the Headset feedback information, the operator can intuitive judgment percussion cable
  • According to the waveform real-time cable, knock in the measured cable real-time waveform will have obvious wave, visual disturbance
  • VFL function is available
  • Non destructive optical cable
