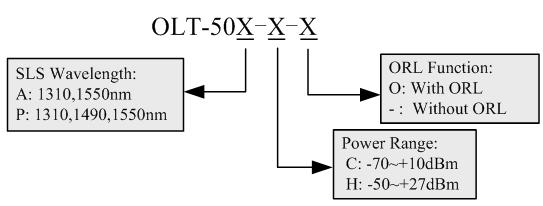

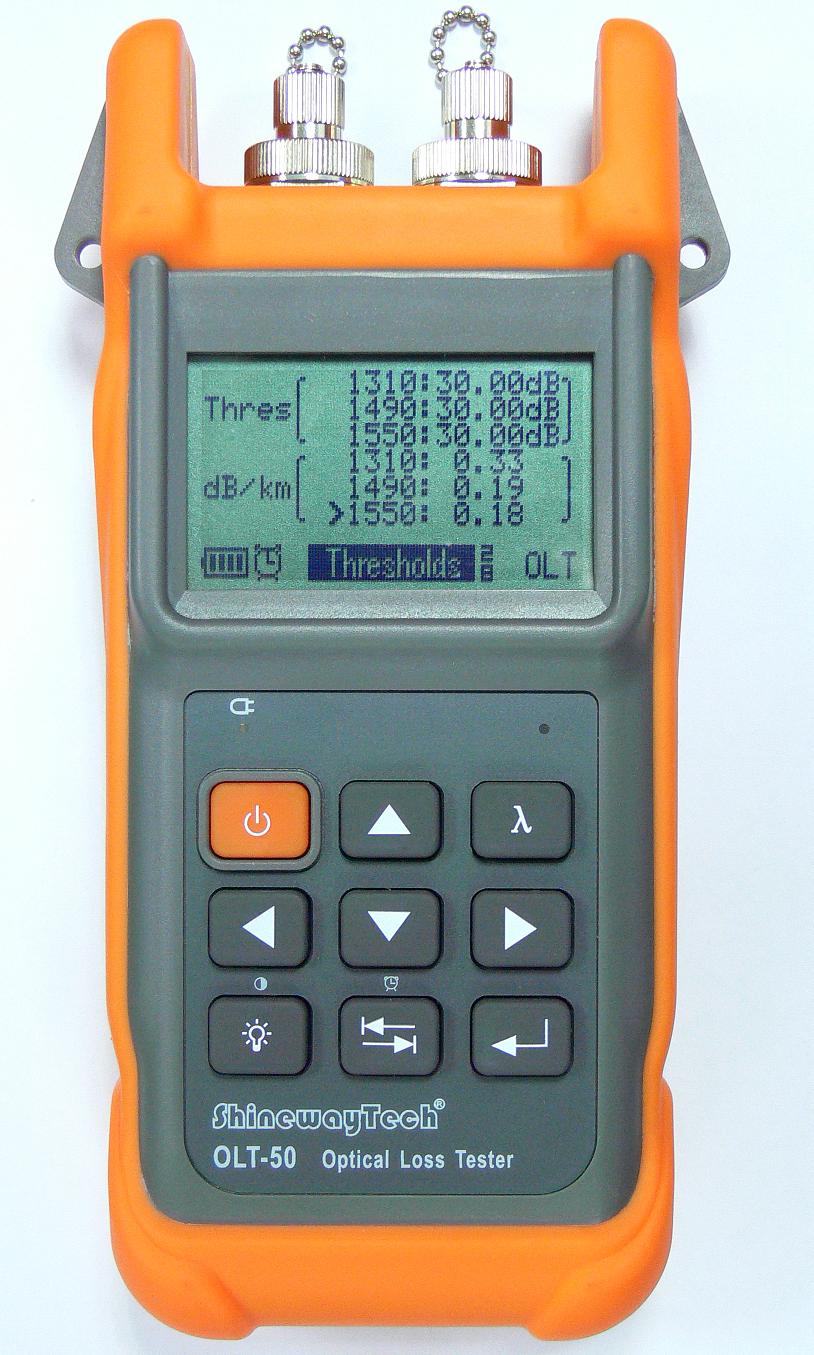

Tester masura pierderi fibra optica cu Power-metru si Sursa Laser integrate Shineway OTL-50

Cod: Shineway OTL-50




Brosura produs PDF, 0.17 Mb


Descriere

  • FTTx/PON applicable
  • Optical power monitoring
  • Bidirectional loss test on single fiber
  • ORL test
  • Pass/Fail assessment
  • Automatic wavelength identification
  • Remote reference value setting
  • Internal clock & fiber S/N editable
  • Storage of 1000 test records
  • Data transfer to PC via USB
  • USB power charging
  • Over 50 hours continuous operation
  • No warm-up, quick start
  • Backlight
  • Pocketsize, lightweight and easy-to-use
  • CE, FCC, FDA certificates


Accesorii standard

  • OLT instrument (embeded rechargeable battery, P/N: AC-BAT-15)
  • Connector (P/N: AC-CONN-FC-L, AC-CONN-FC-P-300),
  • USB cable (P/N: AC-CABL-USB-15),
  • US standard AC Adapter(P/N:AC-ADPT-15-US), used with USB cable,
  • OLT Software CD(P/N:AC-CD-OLT),
  • CE Certificate,Warranty Card,Calibration Certificate, Quick Reference Guide
  • Simple soft bag(P/N:AC-PB-10),
  • Packing Box(P/N:AC-BOX-10).


Alte produse SHINEWAY

TESTER MASURA PIERDERI FIBRA OPTICA CU POWER-METRU SI SURSA LASER INTEGRATE SHINEWAY OTL-50

• FTTx/PON applicable
• Optical power monitoring
• Bidirectional loss test on single fiber
• ORL test
• Pass/Fail assessment
• Storage of 1000 test records
• Data transfer to PC via USB
• USB power charging

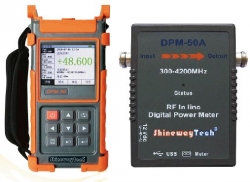

POWER/ WATT-METRU DIGITAL DE PUTERE RF SHINEWAY DPM-50
