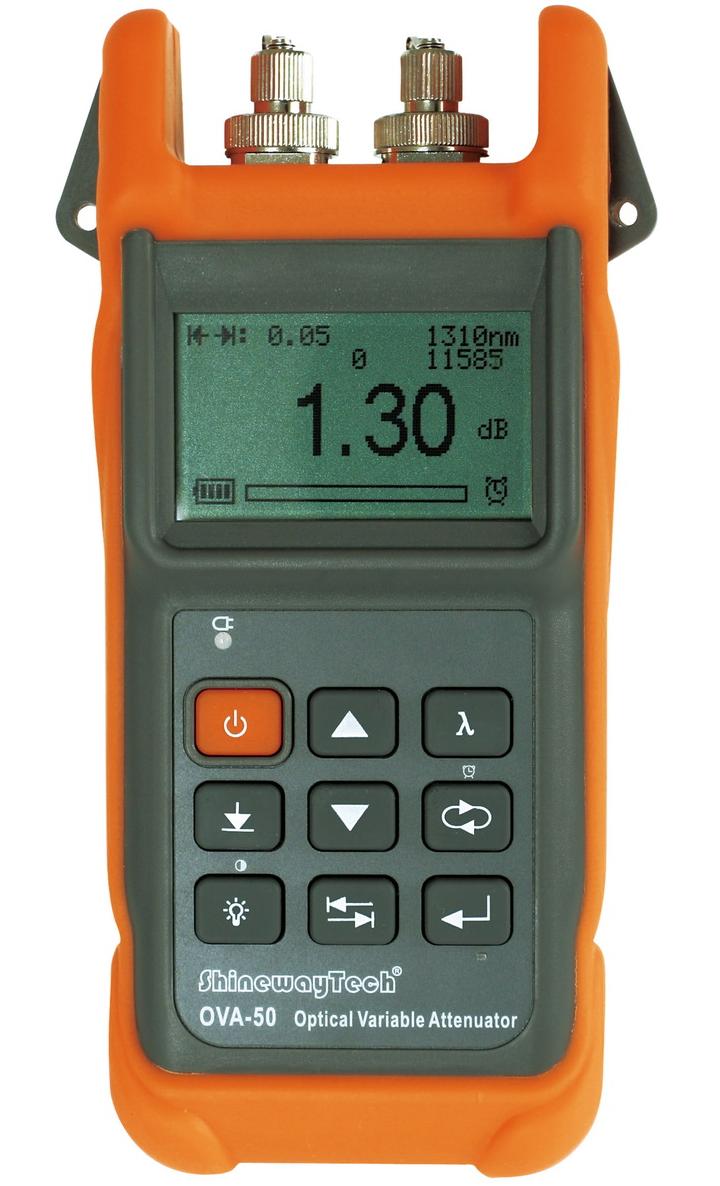

Atenuator optic variabil Shineway OVA-50

Cod: Shineway OVA-50




Brosura produs PDF, 0.25 Mb

Descriere

  • Attenuation Range: 2.5-60dB
  • Direct Output Power Control
  • Working modes:

                 Output power control

                 Absolute/relative attenuation setting

                 Program (Preprogramming frequently-used attenuations)

  • Adjust at step of 0.05/0.10/1.00/10.00 dB
  • PC Control via USB
  • Backlight
  • Over 30 Hours Continuous Operation
  • Handheld, Light and Easy-to-use
  • CE FCC Certificates


Accesorii standard

  • OVA instrument (embeded rechargeable battery, P/N: AC-BAT-15)
  • Connector (P/N: AC-CONN-FC-L),
  • USB cable (P/N: AC-CABL-USB-15),
  • US standard AC Adapter(P/N:AC-ADPT-15-US), used with USB cable,
  • OVA Software CD(P/N:AC-CD-OVA)
  • CE Certificate,Warranty Card,Calibration Certificate, Quick Reference Guide
  • Simple soft bag(P/N:AC-PB-10),
  • Packing Box(P/N:AC-BOX-10).
