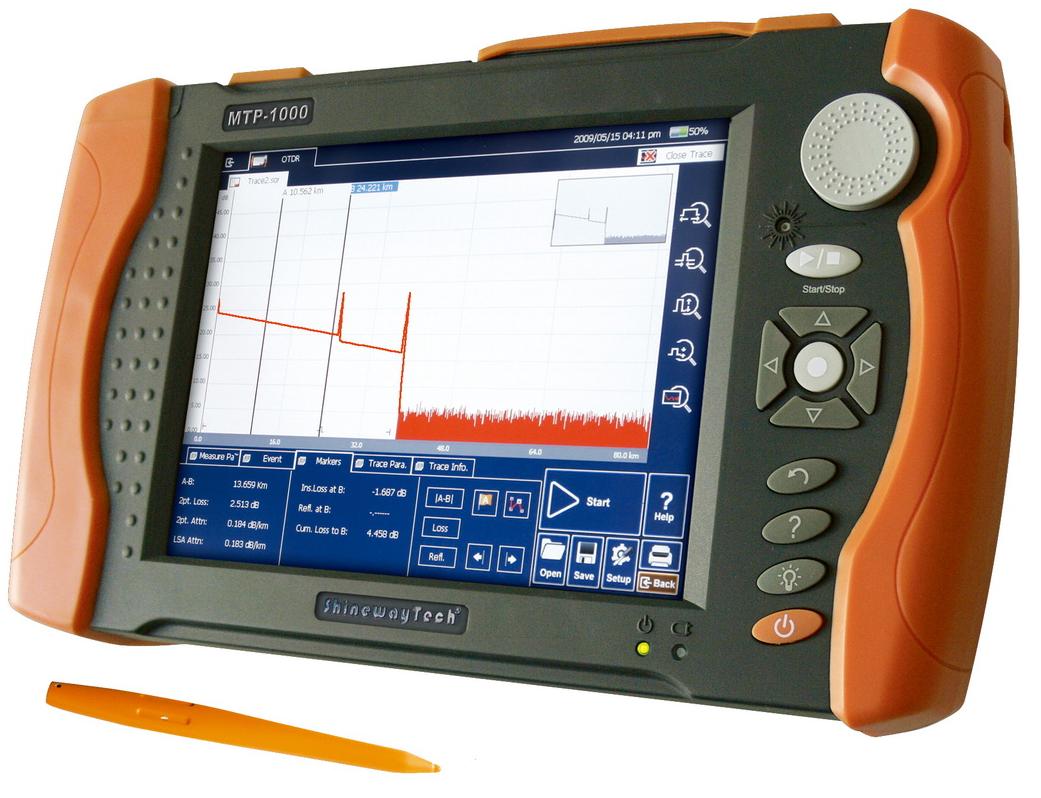

Analizor OTDR retele metropolitane fibra optica, acces si FTTx Shineway MTP-1000

Cod: Shineway MTP-1000




Brosura produs PDF, 0.25 Mb


Descriere

  • up to 3 functional modules, which is specially designed for FTTx/PON applications and can meet all test
  • Flexible wavelength configurations to meet different requirements

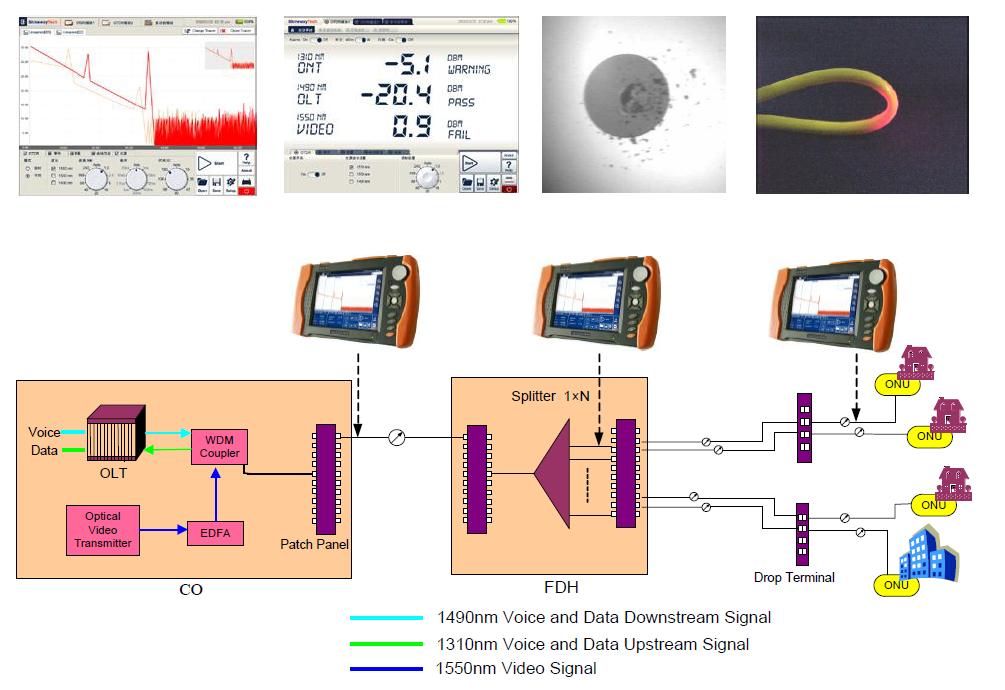

  • FTTX in-service testing
  • PON OTDR identifies splitter and fiber-end
  • Pass-through PON Power Meter simultaneously measures Triple-play PON signals(1310/1490/1550nm)
  • Visible Fault Locator fast locates defective connectors, faults in macrobends, patch cords and patch cord panels
  • Remote control via PC
  • Optical Connector Inspector checks connector and fiber termination for polish quality and cleanliness
  • Lightweight
  • 8.4 inch touch screen
  • Excellent Man-Machine interface for easy operation
  • Damp-dust-shock proof
  • Knob and touchpen combination: Fast and easy handling
  • Optimized power management: 7 hours continuous operation
  • Fast power up with Windows CE


Optiuni recomandate

OTDR Module
Wavelength (±20nm)
Dynamic Range (dB)
MOT200-20VD
1310/1550
45/43
MOT200-30VC
1310/1490/1550
38/37/37
MOT200-31VC
1310/1550/1625
38/37/37
MOT200-32VC
1310/1383/1550
38/37/37
MOT200-40VC
850/1300/1310/1550
18/22/38/37
MOT200-41VC
1310/1490/1550/1625
38/37/37/37



MPN200 General Loss Tester Module:

PON Power Meter, Stabilized Laser Source, Optical Power Meter



MCI100 Optical Connector Inspector Module
