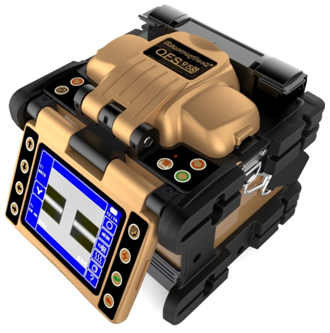

95S fiber optic fusion splicer is designed as a highly flexible instrument with 6-motor precise micron level control and splice loss lower than 0.02dB for G.652 fiber. Equipped with removable universal fiber holders (250½m/900½m/patchcord/FTTx indoor fiber etc.), SOC holder and internal thermometer / barometer, OFS-95S can be deployed anywhere. Fast 5s startup, 9s splicing and automatic heating features enable the splicer an efficient tool for large volume splicing operation during fiber installation and maintenance.

Features:

? Compact and light:1.7Kg with battery

? 6 motors core alignment for precise high-quality splicing

? SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF splicing

? One-fit-all fiber holders for bare fiber, pigtails, patch cords and FTTH indoor fibersplicing

? Auto fiber end-face inspection, auto arc position adjustment, splice loss calculation, temperature and pressure compensation

? Auto and manual splicing

? Splicing=9s, heating=25s(time and power adjustable)

? Arc counter prompts electrode change upon usage

? Auto arc optimization

? Auto heating

? Dual V-groove for perfect fiber alignment

? X/Y and X+Y display for clear fiber core image

? Quick mount battery with power indicator, housed in dust and water splash proof battery dock

? DC output to power external devices

? Built-in illumination

? Wind ½ dust ½ rain - shock proof

? Auto display flip

? Graphical user interface for easy understanding and operation

? Multi-language support

? Optional password protection and GPS function
