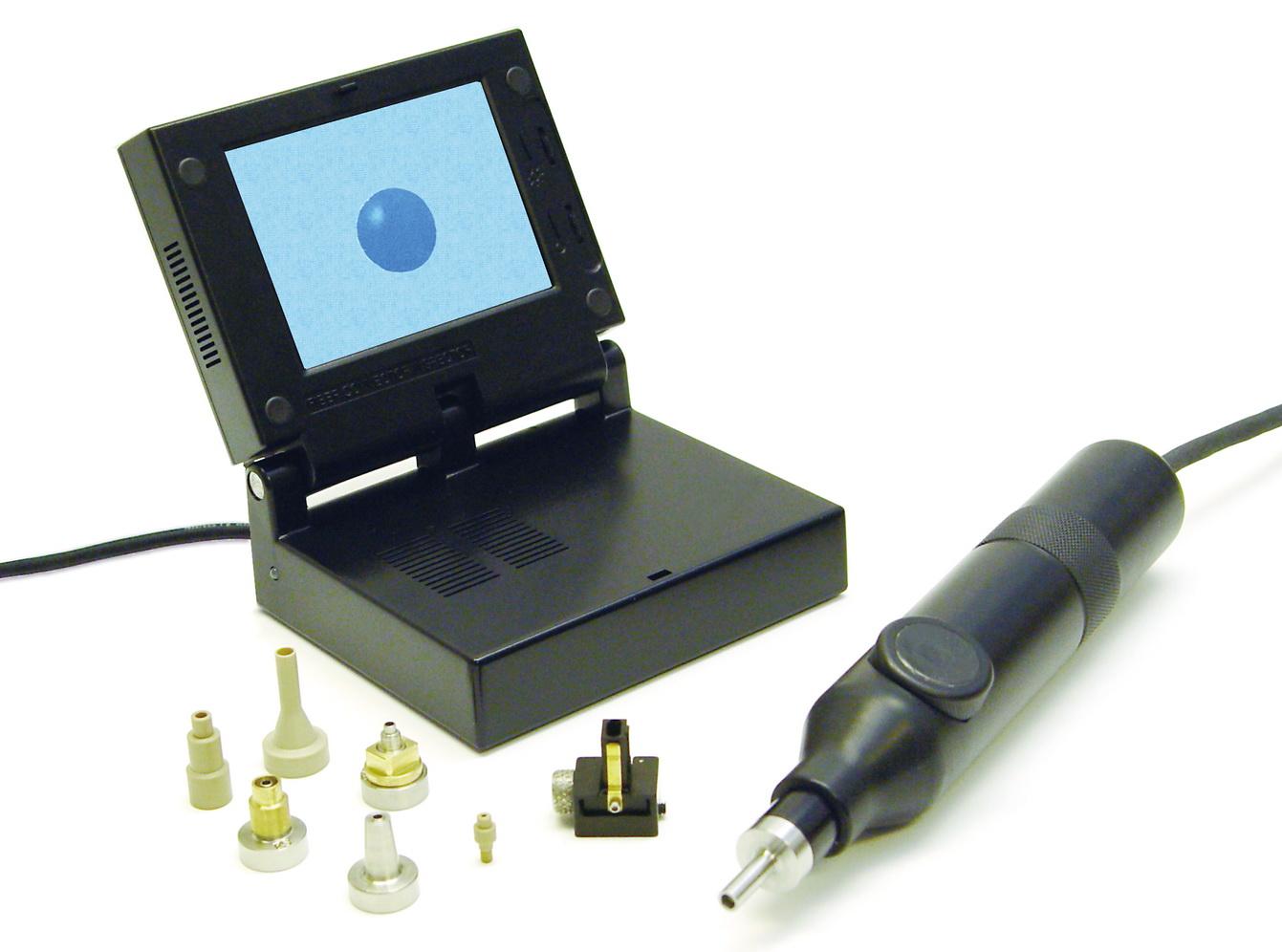

Aparat inspectie conexiuni fibra optica Shineway OCI-20A

Cod: Shineway OCI-20A




Brosura produs PDF, 0.93 Mb

Descriere

  • Eye-safe video viewing
  • Inspect male and female connectors
  • Various tips available
  • Single-handed operation, quick focus
  • Slim to access hard-to-reach connectors
  • Lightweight and solid (1 m drop test)
  • CE FCC FDA certificates


Accesorii standard

  • Handset,
  • LCD monitor set(with a battery box as the base),
  • AC Adapter(P/N:AC-OCI-ADPT),
  • Tip Body for 2.5mm SC/FC female connector (P/N:AC-OCI-SC/FC/F),
  • Guide for 2.5mm SC female connector (P/N:AC-OCI-SC/G),
  • Guide for 2.5mm FC female connectors (P/N:AC-OCI-FC/G),
  • Tip for 1.25mm LC female connector(P/N:AC-OCI-LC/F),
  • Carrying Case(P/N:AC-OCI-CC),
  • User Manual(P/N:AC-MAN-OCI-EN),Warranty Card


Optiuni recomandate

  • Universal tip for 2.5mm male PC-type connectors (AC-OCI-U2.5/PC/M)
  • Universal tip for 2.5mm male APC-type connectors (AC-OCI-U2.5/APC/M)
  • Universal tip for 1.25mm male PC-type connectors (AC-OCI-U1.25/PC/M)
  • Tip for ST female connectors (AC-OCI-ST/F)
  • Tip for FC/APC female connectors (AC-OCI-FC/APC/F)
