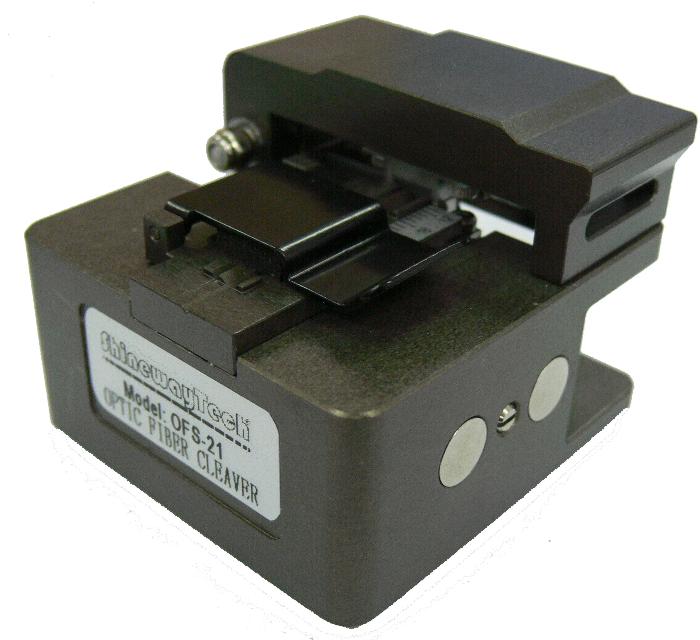

Easy to use, Reliable
Available for Single mode fiber at the standard qualification of ITU-T-Rec. G.652
Desktop type
Easy to replace blade
Able to rotate to change the blade position

Technical specifications:

Applicable range	Single Core silex-fiber (ITU-T-Rec. G.652)
Coating Diameter	f0.25mm &f0.9mm
Fiber Diameter	125µm
Cleave Length	9~22mm
Dimension	58mm(W)55mm(D)48mm(H)
Weight	255g
Cleaving Angle	=1.5°
Average Cleaved Angle (at 100 trails)	=0.75°
Blade Rotational Position	16
Blade Life	12000 times
