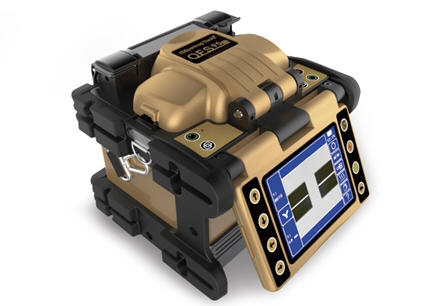

Shineway 95EA Fusion Splicer

Cod: Shineway OFS-95EA




Brosura produs PDF, 0.28 Mb

Descriere

ShinewayTech® OFS-95EA optical fiber fusion splicer is designed with high-speed image processing technology and special precision-positioning technology. It will automatically finish the whole fiber fusion process in 9 seconds by fast mode, and splice loss is lower than 0.02dB for single mode fiber. 3.5-inch LCD, dual CMOS monitors, X and Y axis separately display or simultaneously display, thus different fusion stages can be showed clearly. It is compatible with ITU-T SM/MM/DS/NZDS/ED fiber, and isequipped with 4-in-1 holders and SOC adapter.

OFS-95EA has small volume, light weight, AC/DC power supply and  200+ splicing and heating cycles, so it is particularly suited to telecommunications,radio and television, railway, electric power, military, research institutesfor optical fiber communication construction and maintenance. OFS-95EA  is perfect for FTTH installation and maintenance.



Features:

?  Compact and convenient:1.5kg with battery

?  Four motors, special precision-positioning technology

?  Splice Loss: SMF/BIF: =0.02dB(typ.); MMF: =0.01dB(typ.); DSF/NZDSF/EDF: =0.04dB(typ.)

?  High precision 4-in-1 holder (250½m/900½m/patchcord/FTTx indoor fiber etc),SOC holder

?  unique battery and the host separation design, convenient maintenance and replacement of the battery

?  Double V-groove design

?  High strength portable straps design is convenient for hanging and operating

?  Inner light make the operation environment in the dark

?  Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment

?  Display screen can be flip before and after, can conveniently multi-angle observe

?  76cm drop proof / ISTA certificate

?  Optional GPS function
