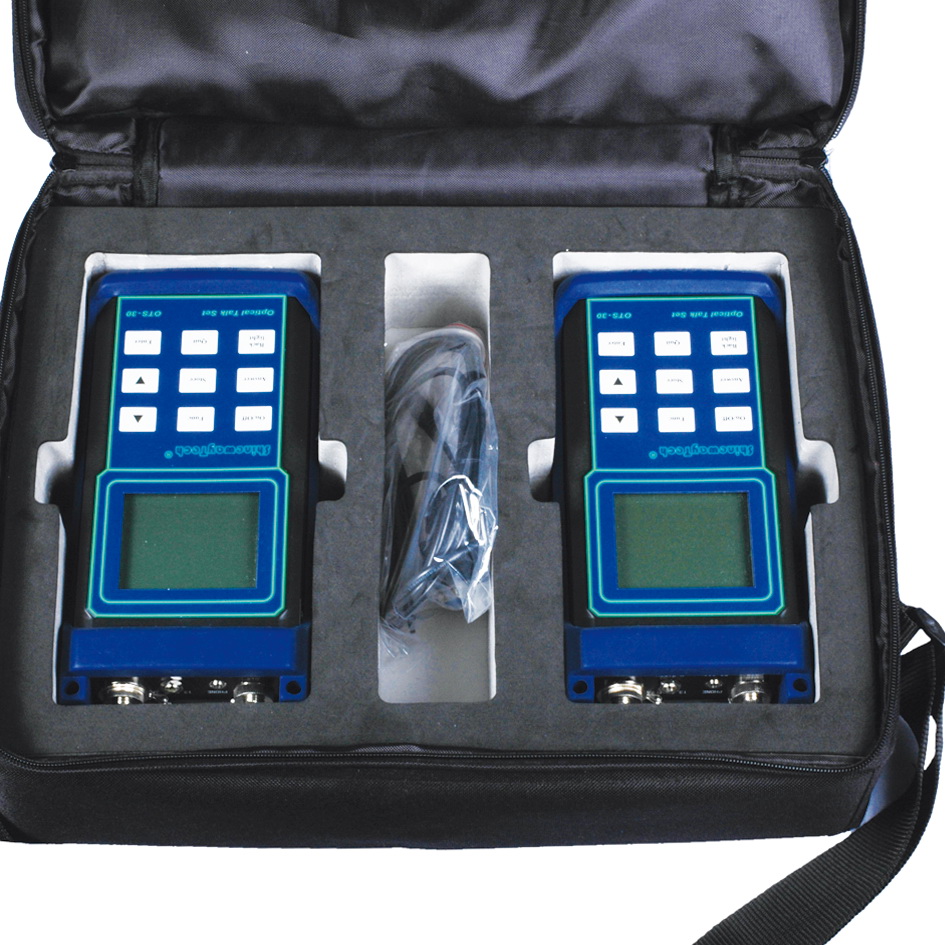

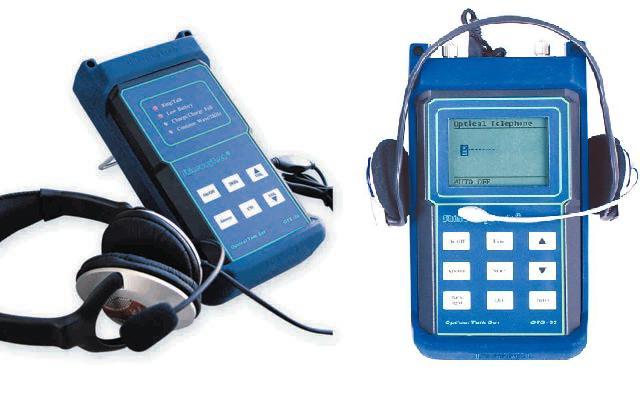

Tester telefonie retea fibra optica Shineway OTS-20/ OTS-30

Cod: Shineway OTS-20/ OTS-30




Brosura produs PDF, 0.17 Mb


Descriere

  • Full duplex multiparty call on single fiber
  • Combines laser source and power meter
  • High-quality voice signal
  • Optional nondestructive Clip-on Coupler:
  • Direct online communication
  • Large internal memory: 4000 records
  • PC software for data download and reporting
  • 10 hours continuous operation/Auto off
  • Handheld, damp-dust-shock proof
  • CE FCC FDA certificates


Accesorii standard

  • Instrument
  • NiMH battery
  • Headset
  • AC adapter
  • Rubber boot
  • Toolkit for soft bag
  • OTS data analysis software CD (for OTS-30)
  • Data transfer cable (RS232, for OTS-30)
  • Warranty card, CE /FCC certificate
  •  Certificate of calibration
  • User manual


Optiuni recomandate

  • AC adaptor (AC-ADPT-20-UV)
  • AC adaptor (AC-ADPT-20-AU)
  • AC adaptor (AC-ADPT-20-JP)
  • Connector (AC-CONN-SC-L)
  • Connector (AC-CONN-ST-L)
  • Ceramics core for LS(AC-FRL-C)
  • Toolkit Soft Bag (AC-PB-31),
  • Luxury Toolkit hard Box (AC-PB-40),
  • Optical Connector Cleaning Tape(P/N:AC-CLN-TAPE),
  • Cleaning Stick(P/N:AC-CLN-STK) 2pcs.
