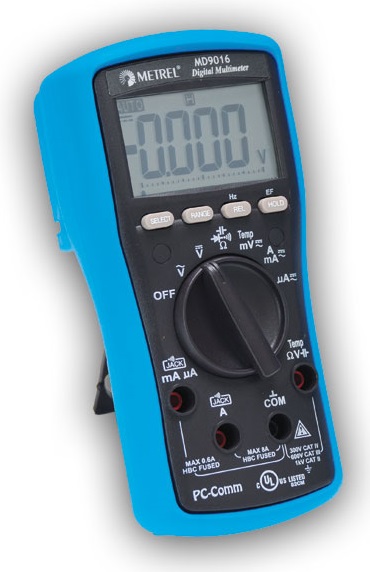

The digital multimeter MD 9016 is a perfect combination of size, Innovative functions and built-in PC communication. It is capable to detect and diagnose most electrical and electrotechnical problems. Display with large easy-to-read figures and one-handed operation make MD 9016 an extremely easy-to-use. This compact instrument combines a high level of functionality and small size and portability.

TEST FUNCTIONS

AC, DC voltage measurement;
AC, DC current measurement;
Capacitance measurement;
Resistance measurement;
Diode test;
Frequency measurement;
Continuity test (acoustic signaling);
Electric field detection;
Temperature measurement.

TECHNICAL DATA

Dimensions (w x h x l): 80 x 50 x 161 mm

Mass (without accessories): 340 g

Accesorii standard

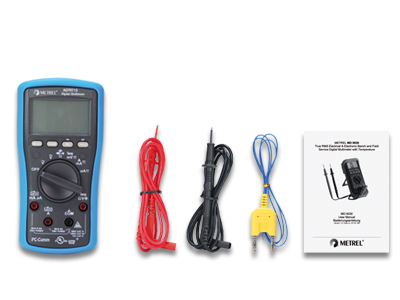

MD 9016 Standard set

Multimeter MD 9016 with rubber holster
Test lead with probe, 2 pcs
Thermocouple probe, type K
1.5 V battery, type AAA, 2 pcs
Instruction manual
Warranty
