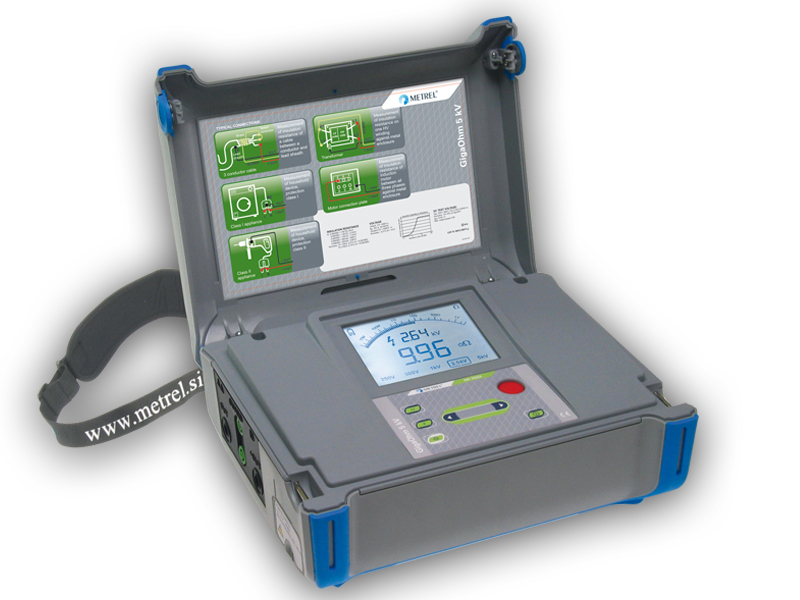

Megohmmetru rezistenta izolatie 5000V Metrel MI-3202 GIGAOHM 5kV

Cod: Metrel MI-3202 MI3202 GIGAOHM 5kV




Brosura produs PDF, 0.38 Mb


Descriere

MI 3202 GigaOhm 5 kV provides a quick and accurate reading of insulation resistance. The large segment LCD screen with backlight offers easy reading of results. The analogue/digital display with analogue graph has a range of up to 1 T? for insulation resistance and 600 V for voltage measurements.



MEASURING FUNCTIONS

  • Quick setting - Quick & Easy test voltage selection
  • Faster testing - 5 mA current source for quick charging of capacitive loads
  • Safe - High CAT IV, 600 V voltage protection
  • Easy to read - Large, bright LCD display with backlight
  • Effective testing - High quality instrument, shielded test leads and accessories (included in the standard set)



STANDARDS APPLIED

Instruments operation:
IEC/EN61557-2


Electromagnetic compatibility:
EN 61326 class B


Safety:
EN 61010-1 (instrument)
EN 61010-031(accessories)



TECHNICAL DATA

Dimensions (w x h x l): 310 x 130 x 250 mm

Weight (with batteries, without accessories): 3 kg



Accesorii standard

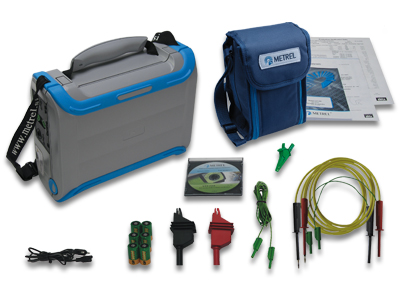

MI 3202 Standard set MI 3202

  • Instrument GigaOhm 5 kV
  • Mains cable
  • 10 kV shielded test lead, black, 2 m
  • 10 kV shielded test lead, red, 2 m
  • 10 kV crocodile clip, 2 pcs (black, red)
  • Guard lead, green, 2 m
  • Crocodile clip, green
  • 6 x 1.2 V NiMH rechargeable batteries, type C
  • Handbook on CD
  • Instruction manual
  • Calibration certificate


Alte produse METREL

TESTER IMPEDANTA LINIE SI BUCLA INTRERUPTA RETEA ELECTRICA LA CURENTI INALTI METREL A 1143 EURO Z 290 A

• High precision line impedance;
• High precision fault loop impedance;
• Contact voltage.
• Range widening: adapts the instruments to read from 0.1 m? up to 19.99 ?.
• Multi-system testing: works on both single phase and 3-phase systems (110 V to 440 V).

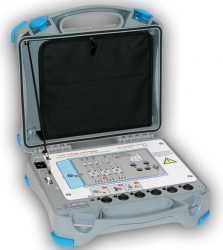

PLATFORMA PREZENTARE SECURITATE INSTALATII ELECTRICE METREL MI 3300 PAT DEMO
