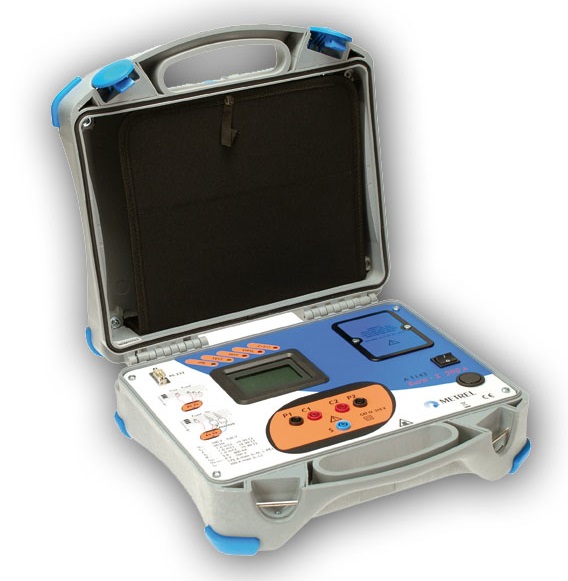

The A 1143 Euro Z 290 A is a professional portable high current impedance tester. It performs high precision line and high precision fault loop impedance measurements in environments up to CAT IV / 310 V.

MEASURING FUNCTIONS

High precision line impedance;
High precision fault loop impedance;
Contact voltage.

OTHER FEATURES

Independence: instrument is designed to work independantly or in conjunc-tion with: MI 2086 Eurotest 61557, MI 3101 EurotestAT, MI 3105 EurotestXA and MI 3321 MultiServicerXA.
Range widening: adapts the instruments to read from 0.1 m? up to 19.99 ?.
Multi-system testing: works on both single phase and 3-phase systems (110 V to 440 V).
IPSC and IPFC calculation: IPSC and IPFC readings calculated up to 400 kA.
Comfortable carrying: all the acces-sories are put in the strong, rugged, durable case of the instrument.
LCD: Built-in LCD for standalone meas-urements.

TECHNICAL DATA

Dimensions: 345 x 160 x 335 mm
Mass: 5.0 kg

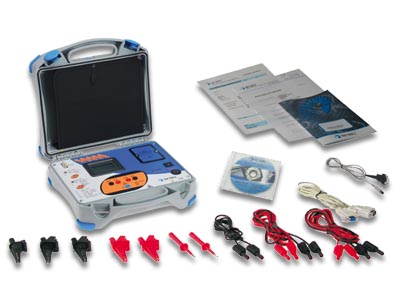

Accesorii standard

A 1143 Standard set A 1143

Instrument Euro Z 290 A
Test lead, 2-wire, 2 pcs
Test lead, black, 2 m
Test probe, red, 2 pcs
Crocodile clip, black, 3 pcs
Crocodile clip, red, 2 pcs
RS232 cable
RS232-PS/2 cable
Instruction manual
Calibration certificate
