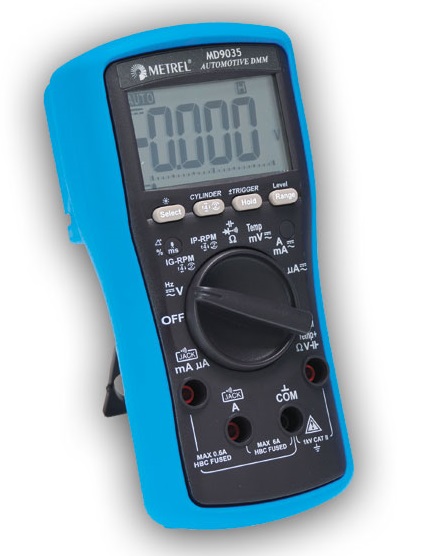

Multimetru portabil pentru auto Metrel MD 9035

Cod: Metrel MD9035 MD-9035




Brosura produs PDF, 0.25 Mb


Descriere

Metrel MD 9035 is a unique automotive multimeter top class with many exciting features, such as: Selectable 4-stroke, 4-DIS/2-stroke, & 2-DIS engine RPM; Selectable Trig (+)/Trig- on % & ms readings; Selectable Sensitivity-Levels on RPM, Dwell, % & ms readings, BeepJack warning, Backlit display and Display hold. MD 9035 is also equipped with automatic range selection and extra fast analog bar-graph.



TEST FUNCTIONS

  • AC, DC voltage measurement;
  • AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Both IP (inductive) & IG (contact) RPM;
  • ms Fuel-injection on time;
  • % Duty cycle;
  • Dwell angle;
  • Line-Level Hz (ACV, DCV);
  • Frequency measurement;
  • Continuity test (acoustic signaling);
  • Electric field detection;
  • Temperature measurement



TECHNICAL DATA

Dimensions (w x h x l): 80 x 50 x 161 mm

Mass (without accessories): 340 g





Accesorii standard

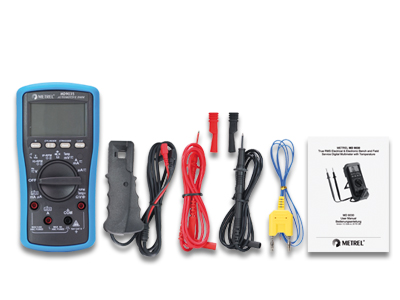

MD 9035 Standard set

  • Multimeter MD 9035 with rubber holster
  • Test lead with probe, 2 pcs
  • Thermocouple probe, type K
  • Inductive pickup clip
  • 1.5 V battery, type AAA, 2 pcs
  • Instruction manual
  • Warranty
