Analizor fotovoltaic curba I-V panouri si sisteme solare Metrel MI 3109 EUROTEST PV LITE

Cod: Metrel MI3109 MI-3109 EUROTEST-PV-LITE




Brosura produs PDF, 0.53 Mb


Descriere

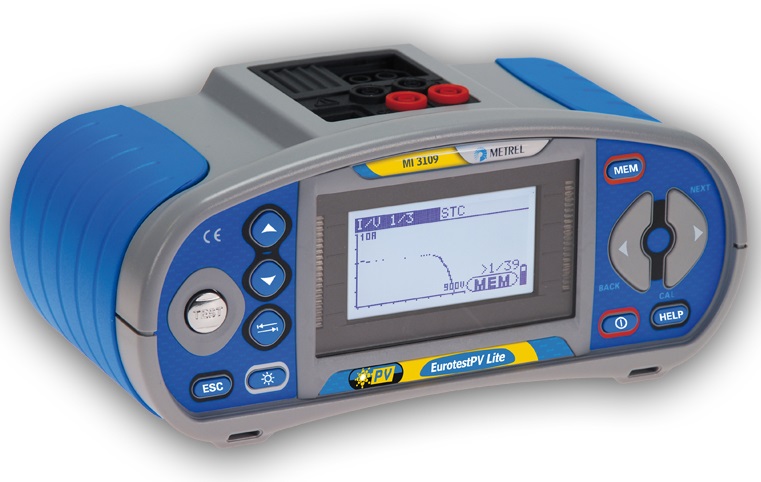

MI 3109 EurotestPV Lite is a photovoltaic (PV) tester. It performs all necessary tests required on photovoltaic installations. This includes all of the tests as required by EN62446, but also includes I - U characteristic measurements, calculation to STC values and power measurements on Inverter’s DC and AC sides (single-phase only). MI 3109 EurotestPV Lite is optimized for PV tests therefore the Autotest operation mode is implemented which is intended to perform a complete set of test needed for verification of PV installations according to EN 62446 with pressing off only one button. With optional accessories the same PV test functionality as with MI 3108 EurotestPV is available.



MEASURING FUNCTIONS

Photovoltaic installations:

Measurements on DC side of PV installation:

  • Voltage, current, power, energy;
  • Uoc (Open Circuit Voltage) and Isc (Short Circuit Current);
  • I - U curve of PV modules and strings;
  • Irradiance;
  • Module temperature.

Measurements on AC side of PV installation:

  • Voltage, current, power;
  • Efficiency of PV module, inverter, PV system calculation.



Electrical installations:

  • Insulation resistance;
  • Continuity of PE conductors.



OTHER FEATURES

Photovoltaic installations:

  • Autotest
  • Calculation to STC values;
  • Efficiency calculations;
  • Graphical representation of module’s I - U curve;
  • 2 voltage & 2 current channels for simultaneous AC & DC parameters measurements;
  • Optional PV Remote Unit for simultaneous measurements of solar irradiation and temperature of PV module.



SOFTWARE

PC SW EuroLink PRO is a strong creating tool of professional Visual Inspection Report and Testing Result Report.



TECHNICAL DATA

Dimensions (w x h x l): 230 x 103 x 115 mm.
Mass (without accessories): 1.3 kg.



Accesorii standard

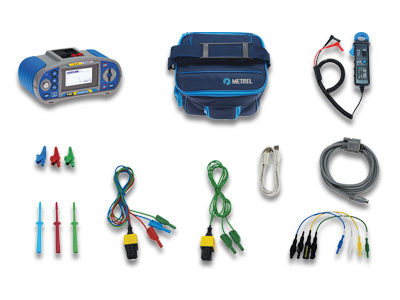

MI 3109 Standard set MI 3109 ST

  • Instrument MI 3109 EurotestPV Lite
  • Soft carrying bag
  • Universal PV test lead, 3 x 1.5 m
  • PV Continuity test lead, 2 x 1,5 m
  • Test probe, 3 pcs (red, blue, green)
  • Crocodile clip, 3 pcs (red, blue, green)
  • PV MC3/4 male/female adapters
  • AC/DC current clamp
  • Power supply adapter + 6 NiMH batteries, type AA
  • USB and RS232 - PS/2 cable
  • PC SW EuroLink PRO
  • Carrying strap
  • Short instruction manual
  • Instruction manual and handbook on CD
  • Calibration certificate

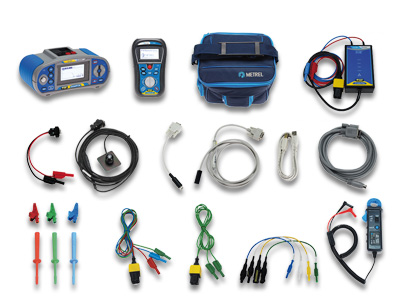

MI 3109 Pro set MI 3109 PS

  • Instrument MI 3109 EurotestPV Lite
  • EurotestPV Remote
  • PV Safety Probe
  • Pyranometer
  • Temperature probe
  • Soft carrying bag, 2 pcs
  • Universal PV test lead, 3 x 1.5 m
  • PV Continuity test lead, 2 x 1,5 m
  • Test probe, 3 pcs (red, blue, green)
  • Crocodile clip, 3 pcs (red, blue, green)
  • PV MC3/4 male/female adapters
  • AC/DC current clamp
  • Power supply adapter + 6 NiMH batteries, type AA
  • USB and RS232 - PS/2 cable
  • PC SW EuroLink PRO
  • Carrying strap
  • Short instruction manual
  • Instruction manual and handbook on CD
  • Calibration certificate
