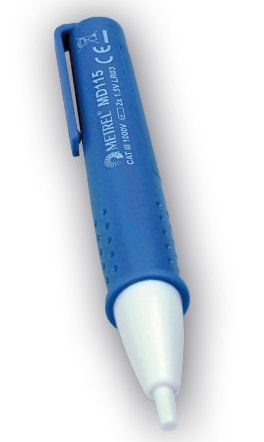

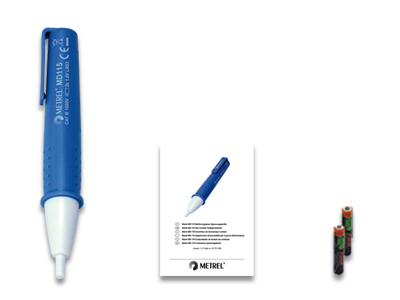

Detector de tensiune fara contact tip pix Metrel MD 115

• Voltage testing up to 1000 V
• Automatic AC/DC recognition
• Continuity buzzer and led to indicate resistances below 500 k?
• Phase & Rotating Field Test
• RCD trip testing
• Diode Test
• Auto Power Off



• High precision line impedance;
• High precision fault loop impedance;
• Contact voltage.
• Range widening: adapts the instruments to read from 0.1 m? up to 19.99 ?.
• Multi-system testing: works on both single phase and 3-phase systems (110 V to 440 V).



• Complete representation of a real low voltage installation in industrial and residential areas
• sockets,
• electrical loads,
• lightning,
• earthing systems for TT, TN and IT types of installations.
• 65 different measurements according to IEC/EN61557 are supported.
• Fault situation simulation switches can generate 19 errors or combination of these
• Detailed instruction manual with profound explanation of all typical measurements.



• Voltage: TRMS, peak, crest factor (4-channel)
• Current: TRMS, peak, crest factor (4-channel)
• Power (active, reactive, apparent)
• Power measurements fully compliant with IEEE 1459 (active, nonactive, fundamental, harmonic, load unbalance)
• Unbalance, flicker measurement
• Harmonic and interharmonic analysis up to 50th harmonics, THD measurement
• Energy (active, reactive, generated, consumed)
• Power quality analysis according to EN 50160 and IEC 61000-4-30 Class A



• DC insulation resistance,
• PE conductor continuity test,
• Line and Loop resistances with Fuse evaluation table built-in,
• RCD test with Trip lock function, phase sequence in 3-phase systems,
• on-line voltage monitor,
• 3-wire Earth resistance test with built-in battery operated generator,
• Leakage Current test,
• test of Luminance with optional LUX meter probe.



• Supports all types of earthing resistance measurements:
• - Standard earthing resistance measurement with spikes
• - Selective earthing resistance test with one current clamp
• - Selective (contactless) earthing resistance with two current clamps
• - Specific earth resistance measurement
• Leakage current tests with current clamps
• Load current tests with current clamps
• High accuracy, very high immunity against external noise
• Preprogrammed limits



• Bidirectional resistance measurement from 1 µO up to 199,9 O
• test current up to 2 A
• High overvoltage protection (CAT III / 600 V)
• Internal protection cicuit
• 50 Hz / 60 Hz ripple detection and rejection.
• more than 800 measurements of 500 mO load 8 2 A test current & 15 s measurement duration
• Pre-programmed limits with PASS/FAIL evaluation of measurement result
• Up to 1500 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• PAT Demoboard is intended for demonstration of electrical equipment safety management.
• Presentation of safety management of electrical equipment in seminars, courses.
• Presentation of typical safety problems on electrical equipment.
• Practical demonstration of measuring instruments (performing tests, making right connections, analysing measured results).
• Continuity of equipotential bonding
• Insulation resistance
• Leakage current
• Touch leakage current
• Polarity of cables
• Functional operation



• DC insulation resistance with test voltages up to 1000V
• PE conductor continuity test
• Loop and Line impedance also without RCD triggering
• RCD test
• Illumination
• Phase sequence in 3-phase systems
• Measurements on earthling and lightning systems with included 2-clamp method (without junctions disassembling).
• Electrical power and consumption measurement,
• current and voltage harmonics measurement,
• phase angle



• Single-phase Built-in Variable Auto-Transformers
• Three-phase Built-in Variable Auto-Transformers
• Motor driven Variable Transformers
• Desk top Variable Transformers
