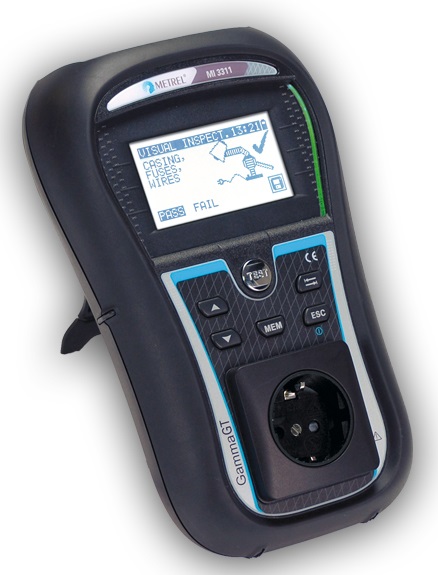

The new MI 3311 GammaGT is a battery powered multifunctional instrument intended to perform measurements for testing the electrical safety of portable electrical equipment.

MEASURING FUNCTIONS

Continuity test with 200 mA.
Insulation resistance.
Insulation resistance of isolated accessible conductive parts.
Substitute leakage current.
Substitute leakage current of isolated. accessible conductive parts.
IEC cord polarity test.
Voltage.
Functional and visual inspection.

OTHER FEATURES

Autosequencing: pre-programmable VDE compatible autosequences, up to 50 custom prepared autosequences and barcode autotests speed up testing and ensure that no tests are missed.
Checkbox: built-in calibration unit per-foms calibration of the instrument and the calibration results are automatically stored into instrument’s memory.
PASS / FAIL: large green and red lights of the LEDs indicate a PASS or FAIL evaluation of test result.
Barcoding system: barcode scanner support for quick test code selection and identification of appliance under test.
User friendly: large LCD screen, two Pass / Fail LED indicators, help screens and warnings make the instrument an extremely easy to use.
Multi-tasking: instrument performs continuity test, 250 V and 500 V insulation tests, substitute leakage mesurement, functioanal and polarity tests.
Downloadable: up to 1500 test results with measuring parameters can be stored in two level memory and downloaded to the PC with the help of PC SW PAT Link PRO.
Built-in charger & rechargeable batteries: instrument has a built-in charging circuit and comes complete with a set of rechargeable NiMH batteries.
PC SW PAT Link PRO enables downloading, viewing, printing of test re-sults and exporting of data to spread-sheet applications.
PC SW PAT Link PRO Plus enables advanced analysis of test results, comparison of old and new results and creation of professional test reports.

TECHNICAL DATA

Dimensions: 140 x 80 x 230 mm

Mass (without accessories): 0.86 kg

Accesorii standard

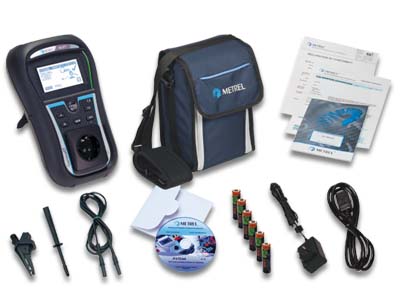

MI 3311 Standard set MI 3311

Instrument GammaGT
Small soft carrying bag
IEC cable, 2 m
Test probe, black
Test lead, black, 1.5 m
Crocodile clip, black
Power supply adapter
6 x AA NiMH batteries
Instruction manual
Calibration certificate
