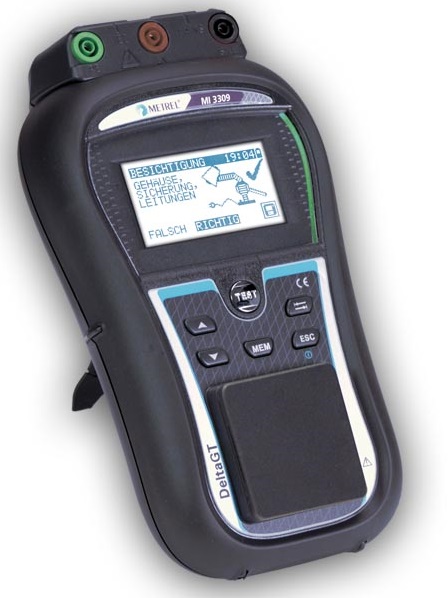

The new MI 3309 DeltaGT is both battery and mains powered multifunctional instrument intended to perform measurements for testing the electrical safety of portable electrical equipment.

MEASURING FUNCTIONS

Functional and visual inspection
Earth bond resistance
Insulation resistance
Insulation resistance of isolated accessible conductive parts
Substitute leakage current
Substitute leakage current of isolated accessible conductive parts
Differential leakage current test
Touch leakage test
PRCD test
Power test
IEC cord polarity test
TRMS voltage meter

OTHER FEATURES

Graphic LCD with resolution of 128 x 64 dots, with backlight.
The graphic display offers easy reading of results, indications, measurement parameters and messages.
Large green and red lights for additional PASS / FAIL indication placed at the sides of the LCD.
Large data flash memory for storing test results & parameters (about 1500 tests with parameters can be stored in average).
Two communication ports (USB and RS232C) for communication with PC, and barcode reader.
Built-in real time clock.
Bar-coding system for quick test code selection and identification of DUTProgrammable limits for PASS / FAIL evaluation.
Fully compatible with new Metrel PATLink PRO PC software package (download, view, print and export of test results).
Optional PC SW PATLink PRO Plus (advanced test result analysis and professional test report creation).
Portable and lightweight design.
Rechargeable battery powered instrument with built-in charging circuit.
The instrument can operate from mains power or batteries.

TECHNICAL DATA

Dimensions: 140 x 80 x 230 mm

Mass (without accessories): 1.2 kg

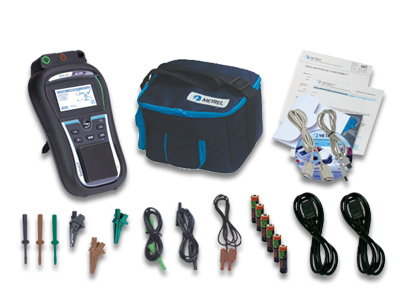

Accesorii standard

MI 3309 Standard set MI 3309

Instrument MI 3309 DeltaGT
Soft carrying bag
IEC cable, 2m
Test lead, brown, green, black, 1.5 m
Crocodile clip, brown, green, black
Test tip, brown, green, black
PC software PATLink PRO
RS232 cable
USB cable
Instruction manual
Short instruction manual
Calibration certificate
NiMH rechargeable batteries, type C, 6 pcs
