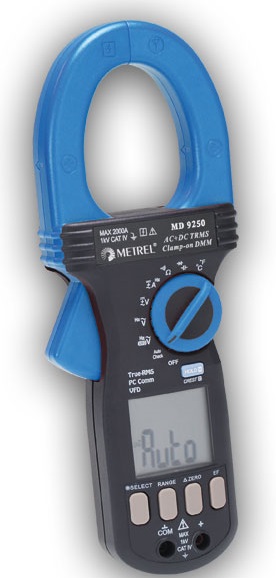

Cleste ampermetric portabil de precizie True RMS Metrel MD 9250

Cod: Metrel MD 9250




Brosura produs PDF, 0.24 Mb


Descriere

The MD 9250 is the first Clamp Meter that meets overvoltage category CAT IV 1000 V. MD 9250 is a high quality clamp meter specially designed for single-hand operation, built-in measuring functions; TRMS AC/DC (current, voltage), capacitance, temperature and full range resistance makes this instrument an ideal tool for the most demanding applications in the industrial sector. The large jaws capacity of (max. 55 mm) in diameter allows AC/DC current measurements up to 2000 A. High resolution and accuracy, 2-line LCD display fast data acquisition and transfer (via optical interface), non-contact voltage detection, and auto-check function are highlights of the instrument.



TEST FUNCTIONS

  • TRMS AC, DC voltage measurement;
  • TRMS AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Frequency measurement;
  • Electric field detection;
  • Continuity test (acoustic signaling);
  • Temperature measurement.



TECHNICAL DATA

Dimensions (w x h x l): 97 x 43 x 264 mm

Mass (without accessories): 608 g



Accesorii standard

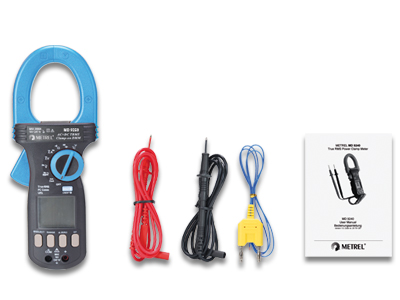

MD 9250 Standard set

  • Current clamp MD 9250
  • Test lead with probe, 2 pcs
  • Thermocouple probe, type K
  • Pouch
  • 1.5 V battery, type AAA, 2 pcs
  • Instruction manual
  • Warranty
