Presentation of safety management of electrical equipment in seminars, courses.
Presentation of typical safety problems on electrical equipment.
Practical demonstration of measuring instruments (performing tests, making right connections, analysing measured results).

Different values of electrical parameters that are usually checked during an electrical equipment safety test can be simulated. Error states can be switched On or Off. The following electrical parameters can be simulated:

Continuity of equipotential bonding
Insulation resistance
Leakage current
Touch leakage current
Polarity of cables
Functional operation

A practically unlimited number of different pieces of equipment (portable and handheld appliances, machines, switchgears) can be simulated by using different demonstration tables. Eight tables are included in the standard set. On demand the PAT Demoboard can be simply upgraded with new demonstration tables (special applications, country design, etc.).

TECHNICAL DATA

Dimensions (w � h � d): 350 x 335 x 160 mm
Mass (without accessories): 7 kg

Accesorii standard

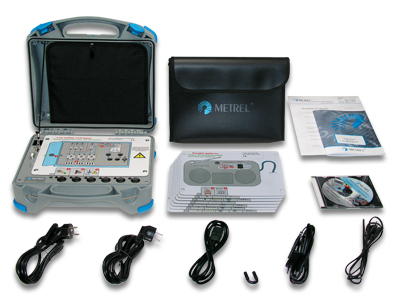

MI 3300 Standard set MI 3300

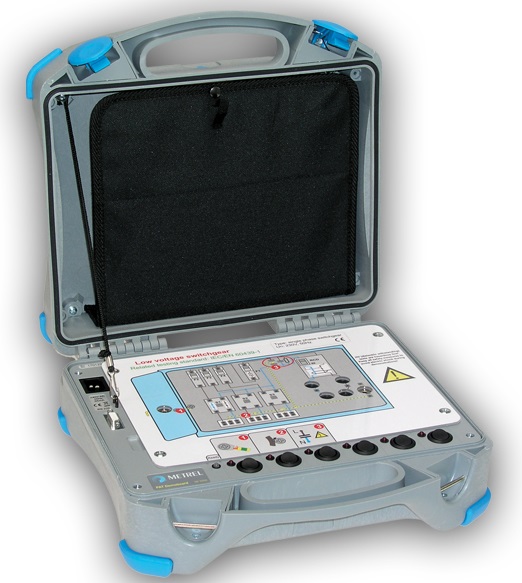

Instrument PAT Demoboard
8 demonstration tables (iron, receiver, IEC cord ,extension drum, coffee machine, washing machine, switchgear)
Jumper
IEC cord
Mains cable
Class I mains cable
Class II mains cable
Test cable for discharge time testing
Carrying bag for demonstration tables
Handbook "Electrical Equipment Testing" on CD
Instruction manual
Calibration certificate
