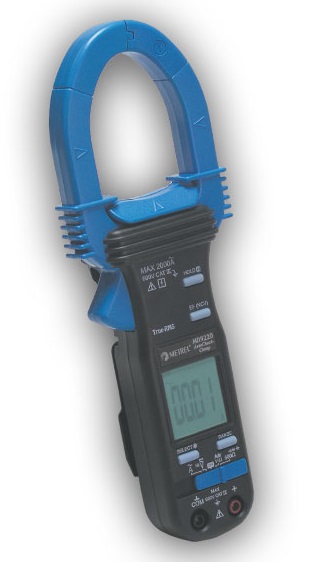

Cleste ampermetric ideal pentru electrician Metrel MD 9220

• Voltage testing up to 1000 V
• Automatic AC/DC recognition
• Continuity testing up to 2000 ?
• Phase & Rotating Field Test RCD fault test
• Diode Test
• Auto Power Off
• Data Hold
• LCD display with backlight



• Measurements on DC side of PV installation:
• Voltage, current, power, energy;
• Uoc (Open Circuit Voltage) and Isc (Short Circuit Current);
• I - U curve of PV modules and strings;
• Irradiance;
• Module temperature.
• Measurements on AC side of PV installation (power quality):
• Voltage, current, frequency, power, PF, energy, harmonics;
• Efficiency of PV module, inverter, PV system calculation.



• Continuity tests (200 mA, 4 A, 10 A, 25 A).
• Insulation resistance.
• Substitute leakage current.
• Differential leakage current.
• Touch leakage current.
• IEC cord polarity test.
• Leakage and load TRMS current measurement with current clamp.



• Bidirectional resistance measurement from 1 µO up to 199,9 O
• test current up to 2 A
• High overvoltage protection (CAT III / 600 V)
• Internal protection cicuit
• 50 Hz / 60 Hz ripple detection and rejection.
• more than 800 measurements of 500 mO load 8 2 A test current & 15 s measurement duration
• Pre-programmed limits with PASS/FAIL evaluation of measurement result
• Up to 1500 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• Insulation resistance with up to 2500V DC voltage
• PI, DAR calculation
• Continuity of PE conductors with 200 mA test current with polarity change
• Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
• Line impedance
• Loop impedance
• Loop impedance with Trip Lock RCD function
• TRMS voltage and frequency



• Resistance measurement: wide measuring range (1 nO ... 20 O)
• adjustable test current (100 mA ... 100 A)
• Voltage drop measurement
• Bar graph: on screen resistance bar graph
• protection level (CAT IV, 50 V)
• Portable
• High protection degree: IP 64.
• Accurate: 1 nO best resolution with 0.25% accuracy
• Custom limits: the limits can be set for PASS or FAIL evaluation of test result.
• Battery powered
• Downloadable: downloads test results via RS232 or USB cable directly to the PC with the help of the software.



• All tests on 3-phase electrical equipment can be carried out, including live leakage test, power, polarity, RCD and Active polarity.
• Simple connection to the PAT/MACHINE tester with automatic detection.
• Simple test procedures, identical to single phase equipment.
• Test sequence for 3-phase tests are automatically set, based on entered test codes and input voltages.



• Insulation resistance with DC voltage
• Continuity of PE conductors with 200 mA test current with polarity change
• Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
• Line impedance
• Loop impedance
• Loop impedance with Trip Lock RCD function
• TRMS voltage and frequency
• Phase sequence
• RCD testing (general and selective, type AC, A and B)
• Earth resistance (3-wire method).



• TRMS AC, DC voltage measurement;
• TRMS AC, DC current measurement;
• Capacitance measurement;
• Resistance measurement;
• Diode test;
• Frequency measurement;
• Continuity test (acoustic signaling);
• Temperature measurement.



• 110 V … 1000 V AC measurement range
• CAT III / 1000 V overvoltage protection
• visual display indicator
