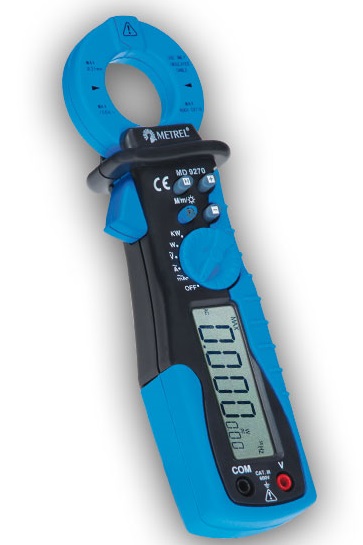

MD 9270 is a unique earth leakage clamp meter. It not just has the ability to ac-curately read the TRMS AC leakage current of a system, it can also detect losses in the system and suggest possible reasons for the loss.

TEST FUNCTIONS

TRMS AC voltage measurement.
TRMS AC current measurement.
Frequency measurement.
Power parameters measurement.

KEY FEATURES

TRMS: accurate measurements on sinusoidal and non-sinusoidal signals.
Jaw size: 31 mm. Shielded Jaw: shielded jaw allows the clamp meter to be used in the noisiest environments.
Accurate: readings of AC current with an accuracy of 0.8 % and a base resolution of 0.01 mA and voltage with an accuracy of 0.5 % and a base resolution of 0.1 V.
Power: measures various power parameters (active, reactive, apparent power, THD, PF, phase displacement).
Intelligent loss analysis: complex algorithms detect loss and allow determining possible reasons for current loss.
Harmonics: measures current or voltage harmonic components and a percentage value of a harmonic up to the 49th.
THD and PF: dual display allows readings to be displayed along with Total Harmonic Distortion (THD) or Power Factor (PF).
Peak value: the peak value of the waveform or crest factor can be displayed.
MAX/MIN/HOLD mode: displays maximum, minimum or average measured value.

TECHNICAL DATA

Dimensions (w x h x l): 59 x 37 x 212 mm

Mass (without accessories): 225 g

Accesorii standard

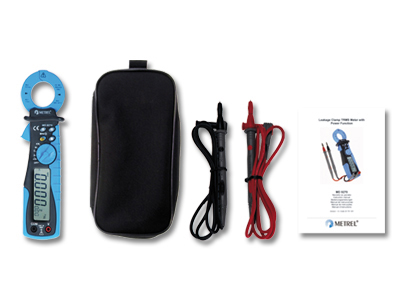

MD 9270 Standard set

Current clamp MD 9270
Test lead with probe, 2 pcs
1.5 V battery, type AAA, 2 pcs
Pouch
Instruction manual
Warranty
