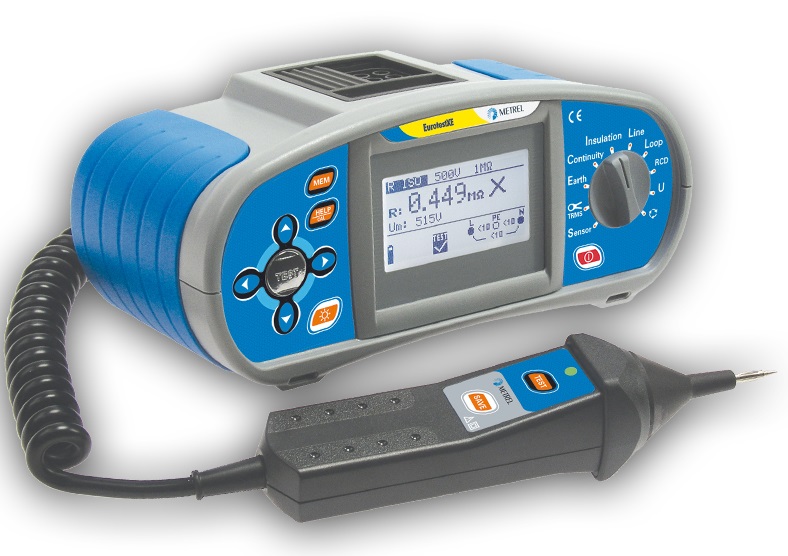

EurotestXE is a typical representative from a new line of Metrel�s installation safety testers. Key advantages like a lightweight design and small dimensions are completed with extensive measurement features.

MEASURING FUNCTIONS

DC insulation resistance,
PE conductor continuity test,
Line and Loop resistances with Fuse evaluation table built-in,
RCD test with Trip lock function, phase sequence in 3-phase systems,
on-line voltage monitor,
3-wire Earth resistance test with built-in battery operated generator,
Leakage Current test,
test of Luminance with optional LUX meter probe.

OTHER FEATURES

Built-in internal memory for storing up to 500 measurements.
Field proven Earth resistance measuring method which eliminates stray earth currents during the measurement.
Fast and reliable Loop resistance measurement without
RCD tripping.
Built-in Fuse characteristics database for quick evaluation of measuring results at ZLINE measurement.
On-line voltage monitor shows voltage levels for
L-L, L-N and L-PE during the measurement
TN/TT/IT Multi System support
Multi-functional tip commander for faster execution
of a measuring sequence.
Rechargeable battery pack with a charger is included
in a Standard set.

SOFTWARE

PC SW EuroLink PRO is a strong creating tool of professional Visual Inspection Report and Testing Result Report.

TECHNICAL DATA

Dimensions (w x h x l): 230 x 103 x 115 mm

Mass (without accessories): 1.3 kg

Accesorii standard

MI 3102 Standard set MI 3102

Instrument EurotestXE
Tip commander, 1.5 m
Schuko-plug test cable
Test lead, 3 x 1.5 m
Earth test set (test lead, 4 m; 2 x test lead, 20 m; 2 x test rod)
Power supply adapter + 6 NiMH rechargeable batteries, type AA
PC Software EuroLink PRO
Test probe, 3 pcs (blue, black, green)
Crocodile clip, 3 pcs (blue, black, green)
RS232 - PS/2 cable
USB cable
Soft carrying neck belt
Soft carrying bag
Short instruction manual
Instruction manual on CD
Handbook on CD
Calibration certificate
