Multimetru digital portabil profesional de precizie Metrel MD 9060

Cod: Metrel MD-9060 MD9060




Brosura produs PDF, 0.24 Mb


Descriere

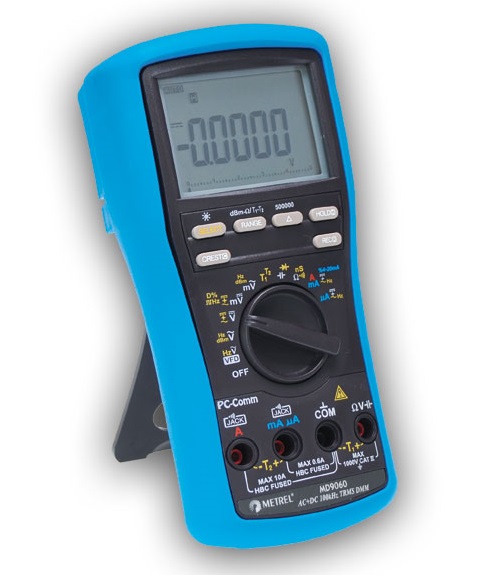

The MD 9060 ranks among the most accurate multimeters with a large bandwidth and very high resolution. Metrel MD 9060 is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency, large 2-line 500.000 counts LCD display, fast data acquisition and transfer (via optical interface), CAT IV / 1000 V, TRMS current and voltage measurement, conductance measurement and fast one-handed operation. MD 9060 has a wide range of extra features, including data hold, memory, min / max, average, differential, peak, peak / peak with extra fast 1ms response time, auto power off, frequency filter, reset and relative function. The MD 9060 is the ideal choice for demanding measurement tasks in industry, in the laboratories and in everyday repair and maintenance practice.





TEST FUNCTIONS

  • TRMS AC, DC voltage measurement;
  • TRMS AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Mains supply frequency measurement;
  • Frequency of digital signals measurement;
  • Continuity test (acoustic signaling);
  • Conductance measurement;
  • Temperature measurement.



TECHNICAL DATA

Dimensions (w x h x l): 103 x 64,5 x 208 mm

Mass (without accessories): 635 g



Accesorii standard

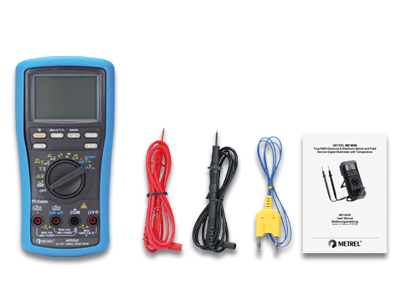

MD 9060 Standard set

  • Multimeter MD 9060 with rubber holster
  • Test lead with probe, 2 pcs
  • Thermocouple probe, type K
  • 9 V battery,
  • Instruction manual
  • Warranty
