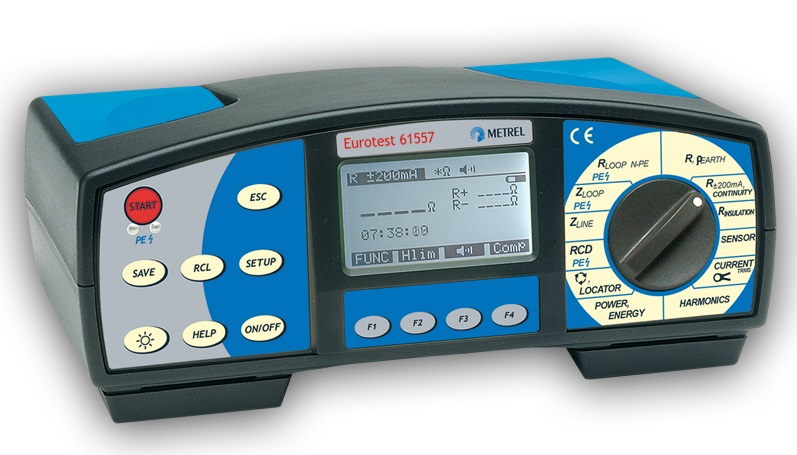

Tester instalatii electrice 1000V Metrel MI 2086 EUROTEST 61557

• Bidirectional resistance measurement from 0,1 µO up to 2000 O
• test current up to 10 A
• Highly efficient 10 A current source generates 10 A into 200 mO load for 15 min without overheating
• High overvoltage protection (CAT IV / 300 V)
• Custom limits can be set for PASS / FAIL evaluation of test result.
• 50 Hz / 60 Hz ripple detection and rejection.
• Instrument can be powered from mains or internal rechargeable battery.
• Up to 1000 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• IT System recognizing, Voltage Range and Voltage Balance;
• ISFL Single Fault Leakage current from Phase 1 and Phase 2 to PE;
• Fuse Trip-out Ability Evaluation, Line Impedance and Ipsc Prospective Short Circuit Current;
• IMD Insulation / ELM Earth Leakage / RCM Residual Current Monitor Devices Control;
• Alarm Trigger or Trip-Out Check and Adjust.



• Insulation resistance with DC voltage
• Continuity of PE conductors with 200 mA test current with polarity change
• Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
• Line impedance
• Loop impedance
• Loop impedance with Trip Lock RCD function
• TRMS voltage and frequency
• Phase sequence
• RCD testing (general and selective, type AC, A and B)
• Earth resistance (3-wire method).



• 1000V AC, DC voltage measurement;
• 8A AC, DC current measurement;
• 600O..60MO Resistance measurement;
• 60nF..3mF Capacitance measurement;
• 5Hz..1MHz Frequency Measurement
• Temperature measurement(thermocouple type K included)



• CAT IV/1000 V overvoltage category
• 1000V TRMS AC, DC voltage measurement;
• 10A TRMS AC, DC current measurement;
• 60nF..25mF Capacitance measurement;
• 600O..60MO Resistance measurement;
• Diode test;
• 5Hz..1MHz Frequency of digital signals measurement



• Resistance measurement: wide measuring range (1 nO ... 20 O)
• adjustable test current (100 mA ... 100 A)
• Voltage drop measurement
• Bar graph: on screen resistance bar graph
• protection level (CAT IV, 50 V)
• Portable
• High protection degree: IP 64.
• Accurate: 1 nO best resolution with 0.25% accuracy
• Custom limits: the limits can be set for PASS or FAIL evaluation of test result.
• Battery powered
• Downloadable: downloads test results via RS232 or USB cable directly to the PC with the help of the software.



• TRMS AC voltage and current measurement.
• Frequency measurement.
• Power: measures various power parameters (active, reactive, apparent power, THD, PF, phase displacement).
• Intelligent loss analysis: complex algorithms detect loss and allow determining possible reasons for current loss.
• Harmonics: measures current or voltage harmonic components and a percentage value of a harmonic up to the 49th.
• Total Harmonic Distortion (THD)
• Power Factor (PF).



• Five pre-set test voltages: 250V, 500V, 1000V, 2500V and 5000V
• up to 1 T? for insulation resistance
• 600 V for voltage measurements
• Quick setting - Quick & Easy test voltage selection
• Faster testing - 5 mA current source for quick charging of capacitive loads
• Safe - High CAT IV, 600 V voltage protection
• Easy to read - Large, bright LCD display with backlight



• All tests on 3-phase electrical equipment can be carried out, including live leakage test, power, polarity, RCD and Active polarity.
• Simple connection to the PAT/MACHINE tester with automatic detection.
• Simple test procedures, identical to single phase equipment.
• Test sequence for 3-phase tests are automatically set, based on entered test codes and input voltages.



• Loop impedance / prospective fault current
• Line impedance / prospective short-circuit current
• Built-in fuse characteristics for quick evaluation of measuring results
• RCD tests (trip out time, contact voltage, ramp test, Autotest)
• Testing on 1- and 3-phase systems
• Phase sequence test
