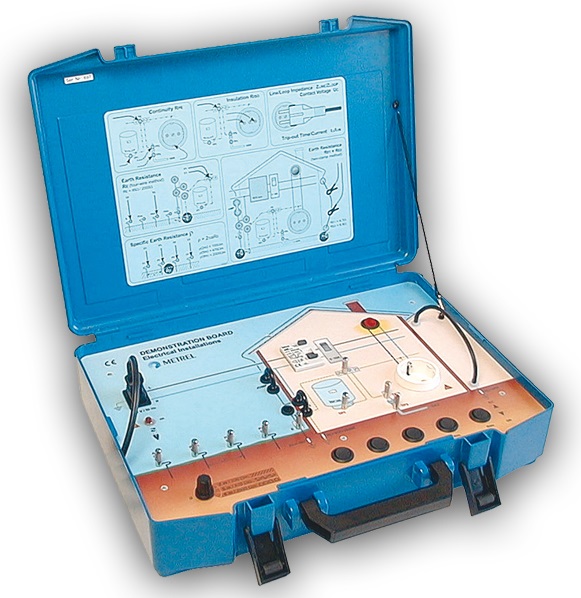

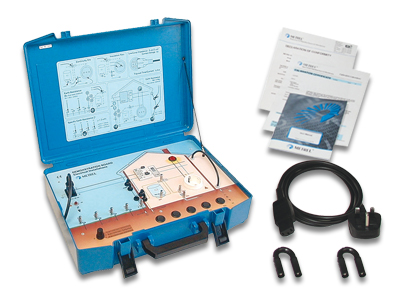

Platforma simulare instalatie electrica rezidentiala Metrel MI 2166 DEMO

• Continuity tests (200 mA, 4 A, 10 A, 25 A).
• Insulation resistance.
• Substitute leakage current.
• Differential leakage current.
• Touch leakage current.
• IEC cord polarity test.
• Leakage and load TRMS current measurement with current clamp.



• TRMS AC voltage and current measurement.
• Frequency measurement.
• Power: measures various power parameters (active, reactive, apparent power, THD, PF, phase displacement).
• Intelligent loss analysis: complex algorithms detect loss and allow determining possible reasons for current loss.
• Harmonics: measures current or voltage harmonic components and a percentage value of a harmonic up to the 49th.
• Total Harmonic Distortion (THD)
• Power Factor (PF).



• 1000V AC, DC voltage measurement;
• 8A AC, DC current measurement;
• 600O..60MO Resistance measurement;
• 60nF..3mF Capacitance measurement;
• 5Hz..1MHz Frequency Measurement
• Temperature measurement(thermocouple type K included)



• Simulation of common electrical installation usually met in an individual house or apartment
• Various test methods supported by different test instruments can be presented.
• Acceptable or faulty parameters can be preset by five »fault« switches.
• Some real elements of electrical installation are placed on the front panel like RCD protection device, ON/OFF switch



• TRMS AC, DC voltage measurement;
• TRMS AC current measurement;
• Resistance measurement;
• Frequency measurement;
• Continuity test (acoustic signaling);
• Power parameters measurement.



• TRMS voltage and frequency
• Continuity
• Insulation resistance
• RCD testing (type AC and A)
• Fault loop / RCD Trip Lock impedance
• Line impedance
• Phase sequence



• DC insulation resistance,
• PE conductor continuity test,
• Line and Loop resistances with Fuse evaluation table built-in,
• RCD test with Trip lock function, phase sequence in 3-phase systems,
• on-line voltage monitor,
• 3-wire Earth resistance test with built-in battery operated generator,
• Leakage Current test,
• test of Luminance with optional LUX meter probe.



• Adjustable test voltage from 250 V to 5000 V in 50 V steps.
• Resistance measuring range 5 T?.
• Adjustable measuring time from 1 second to 90 minutes.
• Automatic PI, DAR and DD index calculation and capacitance measurement up to 50µF.
• Automatic load discharge after completed measurement.
• Guard terminal for elimination of insulation surface currents.
• AC and DC voltage measurement up to 600 V.



• Complete representation of a real low voltage installation in industrial and residential areas
• sockets,
• electrical loads,
• lightning,
• earthing systems for TT, TN and IT types of installations.
• 65 different measurements according to IEC/EN61557 are supported.
• Fault situation simulation switches can generate 19 errors or combination of these
• Detailed instruction manual with profound explanation of all typical measurements.



• DC insulation resistance with test voltages up to 1000V
• PE conductor continuity test
• Loop and Line impedance also without RCD triggering
• RCD test
• Illumination
• Phase sequence in 3-phase systems
• Measurements on earthling and lightning systems with included 2-clamp method (without junctions disassembling).
• Electrical power and consumption measurement,
• current and voltage harmonics measurement,
• phase angle
