Cleste ampermetric industrial de uz general Metrel MD 9230

Cod: Metrel MD 9230




Brosura produs PDF, 0.25 Mb


Descriere

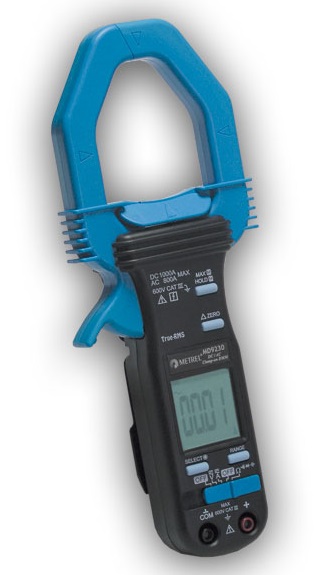

The MD 9230 is a universal current clamp for measuring DC and TRMS AC voltages up to 600 V and DC and TRMS AC currents up to 1000 A. With a broad spectrum of measurement functions and features, it is an ideal tool for service companies and works electricians in the industrial sector.



TEST FUNCTIONS

  • DC and TRMS AC voltage up to 600 V
  • DC and TRMS AC current measurement up to 1000 A and 800 A respectively
  • Resistance measurement
  • Continuity test
  • Diode test
  • Capacitance measurement

TECHNICAL DATA

Dimensions (w x h x l): 78 x 40 x 227 mm

Mass (without accessories): 290 g

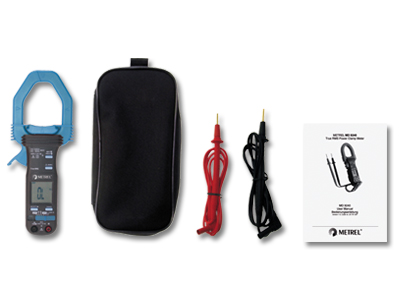

Accesorii standard

MD 9230 Standard set

  • Current clamp MD 9230
  • 2 test leads
  • Battery
  • Pouch
  • User manual
  • Warranty
