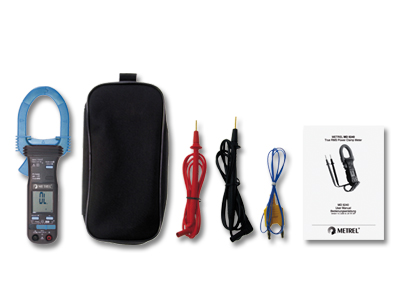

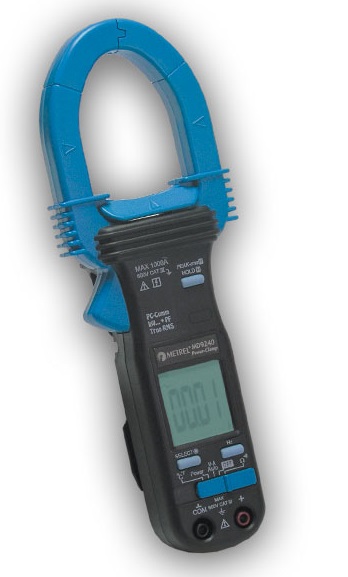

Cleste ampermetric cu masuratori de putere Metrel MD 9240

• Bidirectional resistance measurement from 1 µO up to 199,9 O
• test current up to 2 A
• High overvoltage protection (CAT III / 600 V)
• Internal protection cicuit
• 50 Hz / 60 Hz ripple detection and rejection.
• more than 800 measurements of 500 mO load 8 2 A test current & 15 s measurement duration
• Pre-programmed limits with PASS/FAIL evaluation of measurement result
• Up to 1500 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• large 2-line 500.000 counts LCD display
• 1000V TRMS AC, DC voltage measurement;
• 10A TRMS AC, DC current measurement;
• 50nF..25mF Capacitance measurement;
• 500O..50MO Resistance measurement;
• Diode test;
• 5Hz..1MHz Frequency of digital signals measurement
• Temperature measurement(thermocouple type K included)



• Simulation of common electrical installation usually met in an individual house or apartment
• Various test methods supported by different test instruments can be presented.
• Acceptable or faulty parameters can be preset by five »fault« switches.
• Some real elements of electrical installation are placed on the front panel like RCD protection device, ON/OFF switch



• Voltage testing up to 1000 V
• Automatic AC/DC recognition
• Continuity buzzer and led to indicate resistances below 500 k?
• Phase & Rotating Field Test
• RCD trip testing
• Diode Test
• Auto Power Off



• Insulation resistance with DC voltage
• Continuity of PE conductors with 200 mA test current with polarity change
• Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
• Line impedance
• Loop impedance
• Loop impedance with Trip Lock RCD function
• TRMS voltage and frequency
• Phase sequence
• RCD testing (general and selective, type AC, A and B)
• Earth resistance (3-wire method).



• Bidirectional resistance measurement from 0,1 µO up to 2000 O
• test current up to 10 A
• Highly efficient 10 A current source generates 10 A into 200 mO load for 15 min without overheating
• High overvoltage protection (CAT IV / 300 V)
• Custom limits can be set for PASS / FAIL evaluation of test result.
• 50 Hz / 60 Hz ripple detection and rejection.
• Instrument can be powered from mains or internal rechargeable battery.
• Up to 1000 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• Continuity test with 200 mA.
• Insulation resistance.
• Insulation resistance of isolated accessible conductive parts.
• Substitute leakage current.
• Substitute leakage current of isolated. accessible conductive parts.
• IEC cord polarity test.
• Voltage.
• Functional and visual inspection.



• Measurement of step voltage and contact voltage.
• Measurement of earthing resistance with resolution of 1 m?.
• Measurement of specific earth resistance.
• High current of up to 50 A and effective suppression of noise
• Excellent immunity even against changing earth currents.
• Autonomous Step Voltage meter: no need for long voltage leads.
• Downloads test results directly to the PC with the help of the professional PC SW package HVLink



• DC and TRMS AC voltage up to 600 V
• TRMS current measurement up to 2000 A
• Resistance measurement
• Continuity test
• Diode test
• Frequency measurement
• Capacitance measurement



• 110 V … 1000 V AC measurement range
• CAT III / 1000 V overvoltage protection
• visual display indicator
