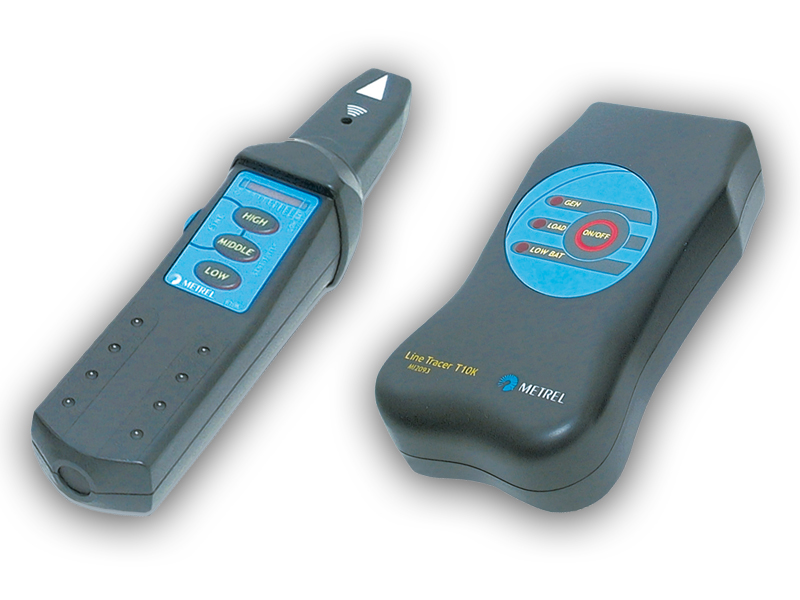

Field proven instrument for under-wall low voltage installation tracing, fuse finding, short-circuit spot determination and metal installation tracing. Accurate fuse locating

MEASURING FUNCTIONS

Can be used on energized or voltage-free systems.
Tips and detailed descriptions of connection schemes for various combinations from everyday practice.

TECHNICAL DATA

Warranty: 1 year

Dimensions (w x h x l):

transmitter: 100 x 50 x 200 mm
receiver: 45 x 45 x 210 mm

Mass (without accessories):

transmitter: 0,3 kg
receiver: 0.15 kg

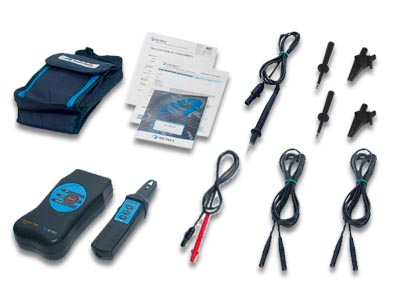

Accesorii standard

MI 2093 Standard set MI 2093

Transmitter T10K
Receiver R10K
Test lead for R10K with built-in resistor and test probe, 1.5 m
Test lead for T10K, 1.5 m, 2 pcs
Special selective probe
Test probe, black, 2 pcs
Crocodile clip, black, 2 pcs
Soft carrying bag
Instruction manual
