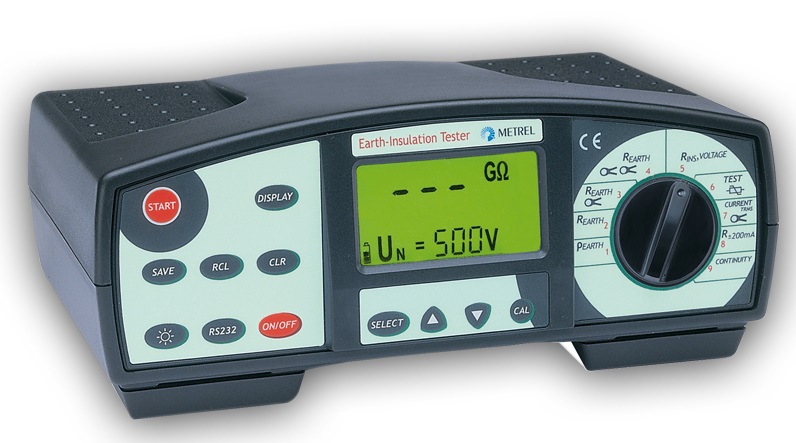

Megohmmetru rezistenta de izolatie 1000V Metrel MI-2088

Cod: Metrel MI-2088 MI2088




Brosura produs PDF, 0.64 Mb


Descriere

Multifunction, digital measuring instrument for testing of earthing and lighting protection systems, PE conductor continuity testing and DC insulation resistance measurement on low voltage electrical installations in accordance with EN 61557.



MEASURING FUNCTIONS

  • Measurements on earthing and lightning protection systems include: standard 4-wire method, standard 4-wire method with current clamps and 2-clamp method without junctions disassembling.
  • Specific earth resistance (soil resistance).
  • DC insulation resistance measurement with test voltages from 50 V up to 1000 V in 10 V steps. Measuring range up to 30 GOhm.



OTHER FEATURES

  • mains voltage and frequency measurement
  • clamp current measurement
  • varistor testing.

Internal memory with a capability to store up to 1000 test results that can later be transferred to a personal computer.



SOFTWARE

Software package EarthLink compatible with Windows operation systems allows download of test results from the instrument to a personal computer.



TECHNICAL DATA

Dimensions (w x h x l): 265 x 110 x 185 mm

Mass (without accessories): 1,7 kg



Accesorii standard

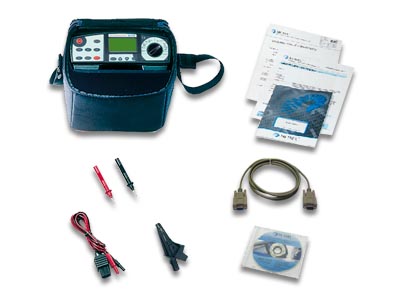

MI 2088 Standard set MI 2088

  • MI 2088 ST
  • Instrument Earth-Insulation Tester
  • Test lead, 2 x 1,5 m
  • Soft carrying bag
  • RS232 cable
  • Test probe, 2 pcs (red, black)
  • Crocodil clip
  • PC Software EarthLink
  • Instruction manual
  • Handbook on CD
  • Calibration certificate

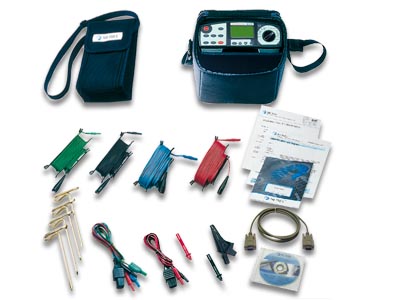

MI 2088 Standard set 20m MI 2088-20

  • Instrument Earth-Insulation Tester
  • Earth test set, 20 m (test lead, 4 x 1 m; 2 x test lead, 20 m; 2 x test lead, 4.5 m; 4 x earth test rod; small soft carrying bag)
  • Test lead, 2 x 1,5 m
  • Soft carrying bag
  • RS232 cable
  • Test probe, 2 pcs (red, black)
  • Crocodil clip
  • PC Software EarthLink
  • Instruction manual
  • Handbook on CD
  • Calibration certificate

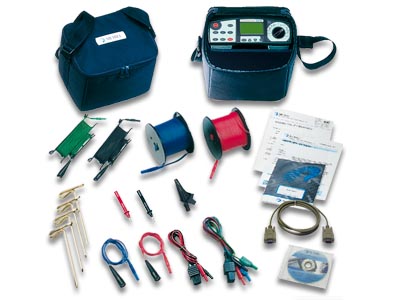

MI 2088 Standard set 50m MI 2088-50

  • MI 2088 ST
  • Earth test set, 50 m (test lead, 4 x 1 m; 2 x test lead, 50 m; 2 x test lead,
    1 m; 2 x test lead, 4.5 m; 4 x earth test rod; soft carrying bag)
  • Instrument Earth-Insulation Tester
  • Test lead, 2 x 1,5 m
  • Soft carrying bag
  • RS232 cable
  • Test probe, 2 pcs (red, black)
  • Crocodil clip
  • PC Software EarthLink
  • Instruction manual
  • Handbook on CD
  • Calibration certificate
