Megohmmetru rezistenta izolatie 1kV si continuitate Metrel MI 3103 GIGAOHM

Cod: Metrel MI3103 MI-3103 GIGAOHM




Brosura produs PDF, 0.96 Mb


Descriere

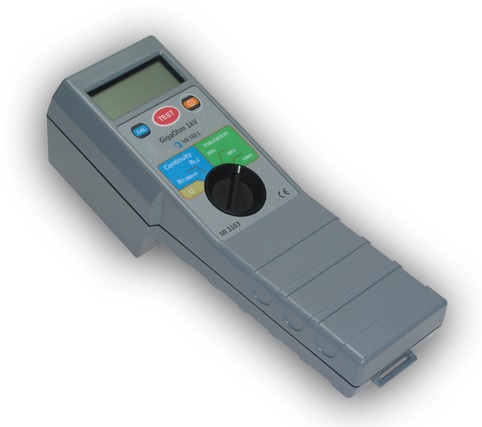

The GigaOhm 1 kV is a portable hand-held battery powered test instrument intended for testing of safety measures on mains installations.





MEASURING FUNCTIONS

Insulation Resistance

  • Three different test voltages (250, 500 and 1000 V) provide the tests required for all installations encountered.
  • Extremely wide range  of measured insulation resistance (up to 2 GW) enables periodic analysis of changes in insulation material.
  • Automatic discharge of the equipment under test after completion of the test.

Continuity

  • 200 mA measurement with automatic polarity change.
  • Automatic compensation of test leads (up to 5 W) eliminates lead resistance.
  • Continuous low current resistance measurement for testing of electrical motors, inductive windings, transformers, etc.

RMS Voltage and Frequency

  • Warnings are given if hazardous voltages are detected.
  • Auto power-off.

TECHNICAL DATA

  • Dimensions (w x h x d): 280 x 70 x 80 mm
  • Mass: 410 g


Accesorii standard

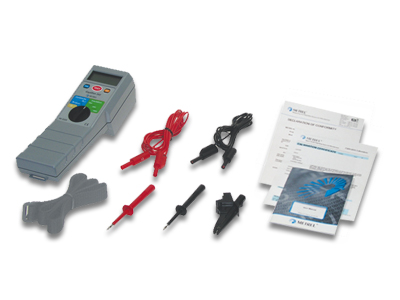

MI 3103 Standard set MI 3103

  • Instrument GigaOhm 1 kV
  • Carrying strap
  • Test lead with test probe, 2 m, (black)
  • Test lead with test probe, 2 m, (red)
  • Crocodile clip (black)
  • Instruction manual
  • Calibration certificate
