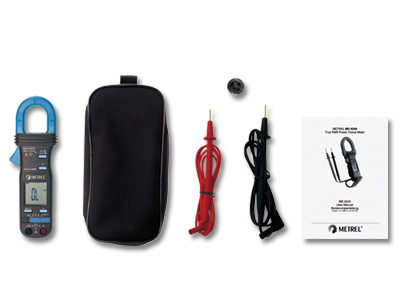

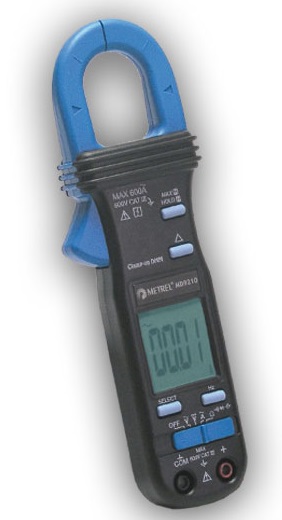

Cleste ampermetric universal ieftin Metrel MD 9210

• insulation resistance,
• PE conductor continuity test,
• Line and Loop esistances with Fuse evaluation table built-in,
• RCD test with Trip lock function,
• phase sequence in 3-phase systems,
• on-line voltage monitor,
• 2-wire and 3-wire Earth resistance test with built-in battery operated generator,
• earth resistance test with Two Clamps method,
• Leakage Current test,
• test of Luminance with optional LUX meter probe



• High resolution and accuracy
• 1000V TRMS AC, DC voltage measurement;
• 10A TRMS AC, DC current measurement;
• 60nF..25mF Capacitance measurement;
• 600O..60MO Resistance measurement;
• Diode test;
• 5Hz..1MHz Frequency of digital signals measurement
• Temperature measurement(thermocouple type K included)



• easy to use LAN tester with wide variety of functions for fault finding
• troubleshooting on IT cabling connections
• TDR facility with adjustable NVP
• determination of distance to the fault
• cable length measurement
• pair determination in multi-pair cables
• crossed pairs,
• crosstalk,
• short-circuit,
• mismatched pairs,
• bad contacts,
• no shield etc..



• Five pre-set test voltages: 250V, 500V, 1000V, 2500V and 5000V
• up to 1 T? for insulation resistance
• 600 V for voltage measurements
• Quick setting - Quick & Easy test voltage selection
• Faster testing - 5 mA current source for quick charging of capacitive loads
• Safe - High CAT IV, 600 V voltage protection
• Easy to read - Large, bright LCD display with backlight



• DC and AC voltage up to 600 V
• AC current measurement up to 600 A
• Resistance measurement
• Continuity test
• Diode test
• Frequency measurement
• Capacitance measurement



• Measurements on DC side of PV installation:
• Voltage, current, power, energy;
• Uoc (Open Circuit Voltage) and Isc (Short Circuit Current);
• I - U curve of PV modules and strings;
• Irradiance;
• Module temperature.
• Measurements on AC side of PV installation (power quality):
• Voltage, current, frequency, power, PF, energy, harmonics;
• Efficiency of PV module, inverter, PV system calculation.



• Functional and visual inspection;
• Earth bond resistance;
• Insulation resistance;
• Substitute leakage current;
• Differential leakage current test;
• Touch leakage test;
• IEC cord polarity test;



• Bidirectional resistance measurement from 0,1 µO up to 2000 O
• test current up to 10 A
• Highly efficient 10 A current source generates 10 A into 200 mO load for 15 min without overheating
• High overvoltage protection (CAT IV / 300 V)
• Custom limits can be set for PASS / FAIL evaluation of test result.
• 50 Hz / 60 Hz ripple detection and rejection.
• Instrument can be powered from mains or internal rechargeable battery.
• Up to 1000 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• Supports all types of earthing resistance measurements:
• - Standard earthing resistance measurement with spikes
• - Selective earthing resistance test with one current clamp
• - Selective (contactless) earthing resistance with two current clamps
• - Specific earth resistance measurement
• Leakage current tests with current clamps
• Load current tests with current clamps
• High accuracy, very high immunity against external noise
• Preprogrammed limits



• Measurement of step voltage and contact voltage.
• Measurement of earthing resistance with resolution of 1 m?.
• Measurement of specific earth resistance.
• High current of up to 50 A and effective suppression of noise
• Excellent immunity even against changing earth currents.
• Autonomous Step Voltage meter: no need for long voltage leads.
• Downloads test results directly to the PC with the help of the professional PC SW package HVLink
