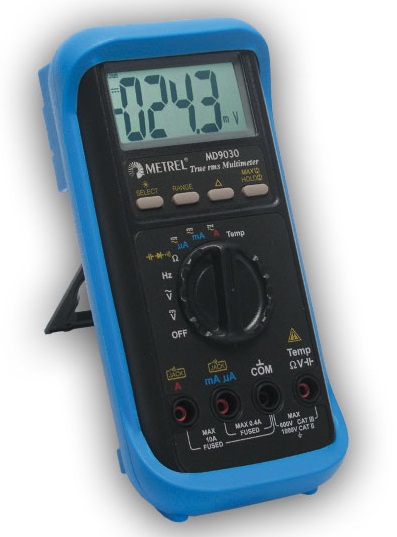

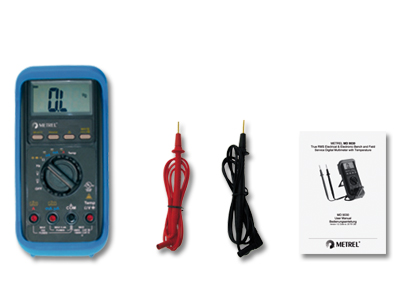

Multimetru portabil mentenanta industrie si laborator reparatii Metrel MD 9030

• Voltage testing up to 1000 V
• Automatic AC/DC recognition
• Continuity testing up to 2000 ?
• Phase & Rotating Field Test RCD fault test
• Diode Test
• Auto Power Off
• Data Hold
• LCD display with backlight



• Measurements on DC side of PV installation:
• Voltage, current, power, energy;
• Uoc (Open Circuit Voltage) and Isc (Short Circuit Current);
• I - U curve of PV modules and strings;
• Irradiance;
• Module temperature.
• Measurements on AC side of PV installation (power quality):
• Voltage, current, frequency, power, PF, energy, harmonics;
• Efficiency of PV module, inverter, PV system calculation.



• Insulation resistance with DC voltage
• Continuity of PE conductors with 200 mA test current with polarity change
• Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
• Line impedance
• Loop impedance
• Loop impedance with Trip Lock RCD function
• TRMS voltage and frequency
• Phase sequence
• RCD testing (general and selective, type AC, A and B)
• Earth resistance (3-wire method).



• CAT IV/1000 V overvoltage category
• 1000V TRMS AC, DC voltage measurement;
• 10A TRMS AC, DC current measurement;
• 60nF..25mF Capacitance measurement;
• 600O..60MO Resistance measurement;
• Diode test;
• 5Hz..1MHz Frequency of digital signals measurement



• Bidirectional resistance measurement from 0,1 µO up to 2000 O
• test current up to 10 A
• Highly efficient 10 A current source generates 10 A into 200 mO load for 15 min without overheating
• High overvoltage protection (CAT IV / 300 V)
• Custom limits can be set for PASS / FAIL evaluation of test result.
• 50 Hz / 60 Hz ripple detection and rejection.
• Instrument can be powered from mains or internal rechargeable battery.
• Up to 1000 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• Very large LCD display with bargraph and backlight
• High measuring range of up to 30 G? with test voltage from 50 V to 1000 V
• Fast and reliable continuity tests with automatic polarity reversal
• Voltage and frequency measurements
• Preprogrammed limits
• PASS/FAIL evaluation of result
• Bright GREEN/RED indicators provides visual evaluation of results
• Suited for testing on CAT IV installations



• Field proven instrument for under-wall low voltage installation tracing
• fuse finding
• short-circuit spot determination and metal installation tracing
• Can be used on energized or voltage-free systems.
• Tips and detailed descriptions of connection schemes for various combinations from everyday practice.



• Insulation resistance with up to 2500V DC voltage
• PI, DAR calculation
• Continuity of PE conductors with 200 mA test current with polarity change
• Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
• Line impedance
• Loop impedance
• Loop impedance with Trip Lock RCD function
• TRMS voltage and frequency



• DC insulation resistance with test voltages up to 1000V
• PE conductor continuity test
• Loop and Line impedance also without RCD triggering
• RCD test
• Illumination
• Phase sequence in 3-phase systems
• Measurements on earthling and lightning systems with included 2-clamp method (without junctions disassembling).
• Electrical power and consumption measurement,
• current and voltage harmonics measurement,
• phase angle



• meets overvoltage category CAT IV 1000 V
• TRMS AC, DC voltage measurement;
• TRMS AC, DC current measurement;
• Capacitance measurement;
• Resistance measurement;
• Diode test;
• Frequency measurement;
• Electric field detection;
• Continuity test (acoustic signaling);
• Temperature measurement.
