Brand: Hameg

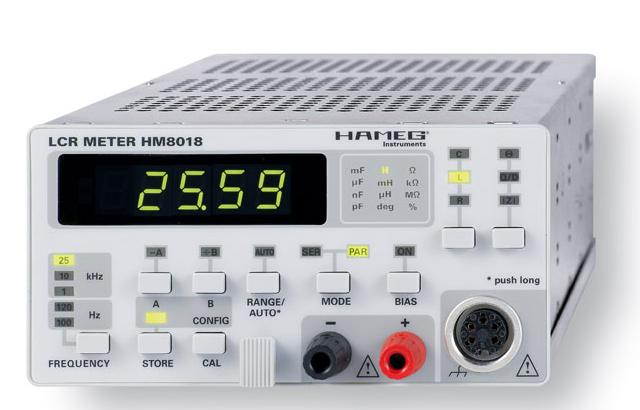

LCR-Meter 25 kHz Hameg HM8018

Code: Hameg HM8018




Datasheet PDF, 0.25 Mb

Description

  • Measurement Functions: L, C, R, T, Q/D, |Z|
  • Basic Accuracy 0.2%
  • 5 Measurement Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 25kHz
  • Max. Resolution: 0.001O, 0.001pF, 0.01µH
  • 2- and 4-Wire Measurement, parallel and series Mode
  • Mainframe HM8001-2 required for operation


Standard accessories

  • Operator‘s Manual


Recommended options

  • HZ10S 5 x silicone test lead (measurement connection in black)
  • HZ10R 5 x silicone test lead (measurement connection in red)
  • HZ10B 5 x silicone test lead (measurement connection in blue)
  • HZ17 Kelvin test lead (4 wire) with probe tips
  • HZ18 Kelvin test lead (4 wire) with gold plated contacts
  • HZ19 Kelvin test lead (4 wire) with SMD-Test-tweezers
