Brand: Hameg

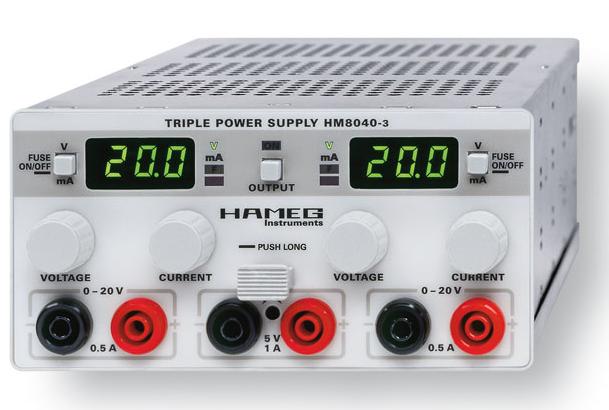

Triple Power Supply Hameg HM8040-3

Code: Hameg HM8040-3




Datasheet PDF, 0.22 Mb

Description

  • 2 x 0…20V/0.5A    1 x 5V/1A
  • 3-Digit switchable Displays (Display Resolution 0.1V/1mA)
  • Pushbutton for Activating/Deactivating all Outputs
  • Adjustable Current Limiting and Electronic Fuse
  • Low Residual Ripple and Low Noise
  • Mainframe HM8001-2 required for operation


Standard accessories

  • Operator’s Manual


Recommended options

  • HZ10S 5 x silicone test lead (measurement connection in black)
  • HZ10R 5 x silicone test lead (measurement connection in red)
  • HZ10B 5 x silicone test lead (measurement connection in blue)
