DC Power Supply Mainframe Unit for Hameg 8000 Series

Code: Hameg HM8001-2




Datasheet PDF, 0.29 Mb


Description

  • Basic Unit for Modules of the Modular System Series 8000
  • Power Supply for 2 Modules
  • DC Voltages electronically regulated, floating and short-circuit proof
  • Power Transformer with thermal Fuse

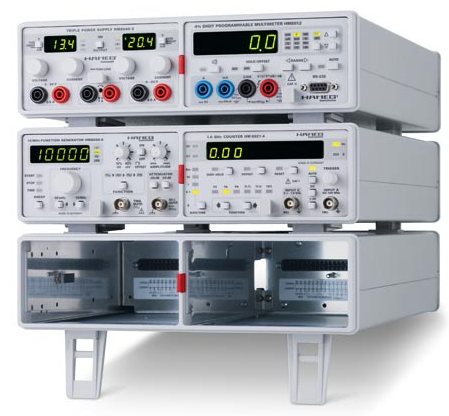

  • Up to 5 Mainframes can be stacked
  • Module HM800 for customized Instrument Construction available
  • 4 BNC Connectors on the Rear Panel of the HM8001-2 (Option HO801) provide for Signal Transmission to or from HM8021-4 and HM8030-6 Modules
