Brand: Micronix

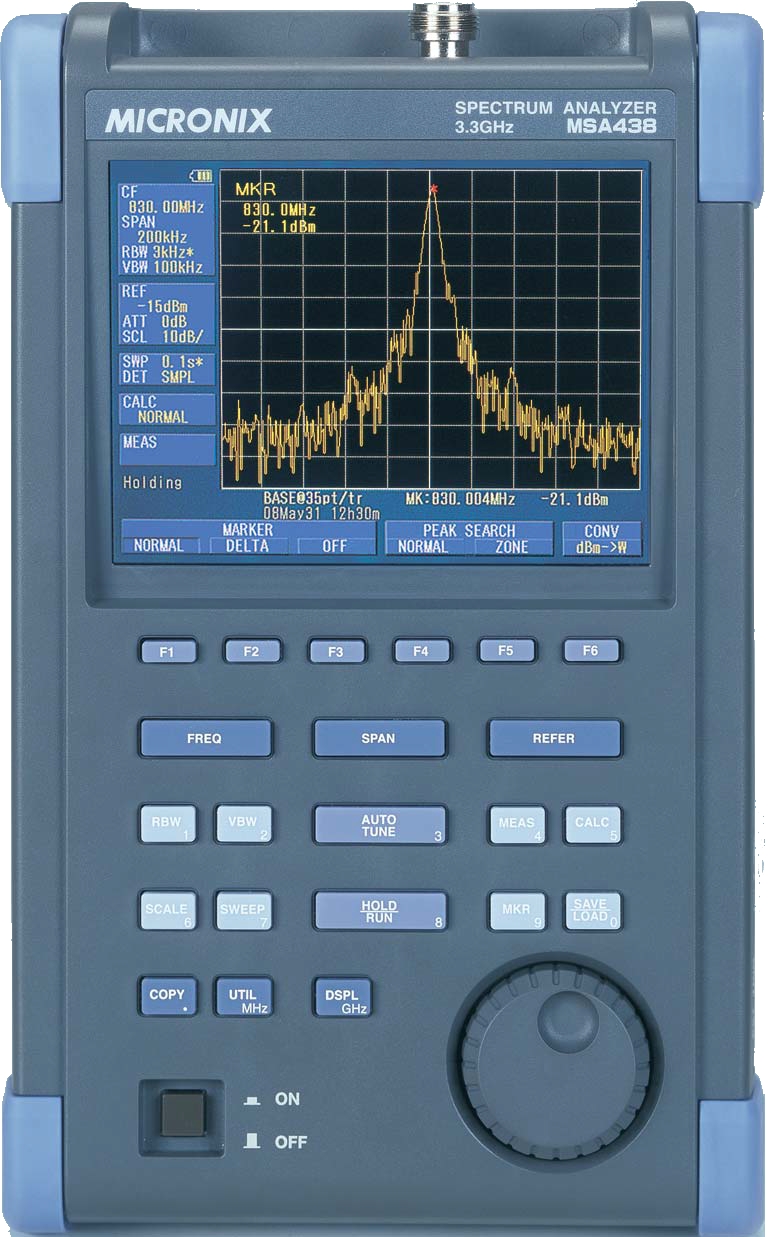

Analizor de spectru portabil 50 kHz..3.3 GHz/ 8.5 GHz Micronix MSA400

Cod: Micronix MSA438/ MSA458/ MSA438TG/ MSA438E



Brosura produs PDF, 2.24 Mb


Descriere

MSA438      50 kHz..3.3 GHz Spectrum Analyzer
MSA458      50 kHz..8.5 GHz Spectrum Analyzer
MSA438TG 50 kHz..3.3 GHz Spectrum Analyzer + 5 MHz..3.3 GHz Tracking Generator
MSA438E    50 kHz..3.3 GHz Spectrum Analyzer for EMI Testing


  • Compact and lightweight 1.8kg
  • Large and color TFT display 5.7 inches, 640x480 dots and color LCD
  • Four hours battery operation
  • USB memory & communication
  • Accurate frequency measurement by PLL synthesizer
  • Average noise level -127dBm
  • 100dB display dynamic range
  • Easy operation by AUTO mode
  • Competitive Measuring
  • Electric field strength, Magnetic field strength and Frequency measurement

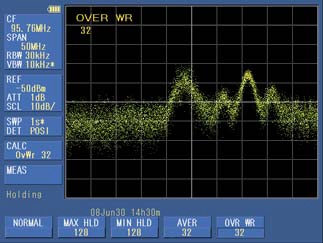

  • Calculation functions : Max hold, Min hold, Averaging, Over write
  • Marker measurement and peak search function
  • Save/Load function
  • Hard copy with printer
  • Abundant options



Optiuni recomandate

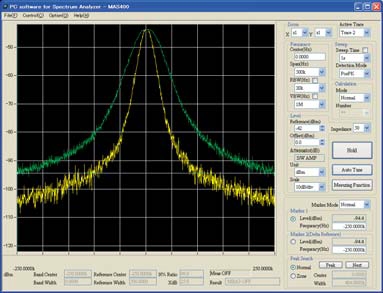

  • PC software (MAS400)
  • PC software for EMI (MAS430)
  • Logging software for unmanned watch (MAS410)
  • Dipole antenna (M401 to M406)
  • Printer (BS2-80TU)
  • Rollpaper (with 10 rolls)
  • Frequency counter
  • Lithium-ion battery (MB400)
  • USB cable (MI400)
  • AC adaptor (MA400)
  • Test accesorry


Alte produse MICRONIX

Brand: Micronix
ANALIZOR DE SPECTRU PORTABIL 50 KHZ..3.3 GHZ/ 8.5 GHZ MICRONIX MSA300

• 50kHz …3.3 GHz Frequency Range(model MSA338)
• 50kHz …8.5 GHz Frequency Range(model MSA358)
• Average noise level -117dBm
• 150 minutes battery operation
• Easy operation by AUTO mode
• Measuring electric field strength from 300MHz to 6.2GHz


Brand: Micronix
STABILIZATOR IMPEDANTA RETEA MICRONIX MPW201

• The conducted emission discharged through the power supply line is measured by using the line impedance stabilization network (LISN).
• To measure the disturbance noise with reproducibility, the LISN, which makes constant the impedance of the power source observed from EUT, is inserted in the power supply line.
• The output impedance of the disturbance noise to be measured is 50 ohms.


Brand: Micronix
SISTEM TESTARE EMC EMI EMS MICRONIX MR2300

• The first EMI total test system in the world
• Compact and broadband antenna by our own development
• Small and large anechoic boxes
• Calibration of the entire system
• Conformity to regional and international standards
• Low system price


Brand: Micronix
INCINTA ECRANATA CU BANDA RULANTA AUTOMATA PENTRU LINII DE PRODUCTIE MICRONIX ME8668

• A model equiping with automatic conveyer for mass production line.
• Outside dimensions : 922 (W) × 794 (H) × 731 (D) mm
• Inside dimensions : 801 (W) × 610 (H) × 610 (D) mm
• Weight : approx. 94kg (include automatic conveyer)
• Capable of customizing


Brand: Micronix
ATENUATOARE PROGRAMABILE MICRONIX MAP800/ MAP810/ MAP850

• The frequency range is so wide as 300MHz to 6.6GHz
• The minimum step size of attenuation is 0.05dB
• maximum attenuation is 80dB
• GP-IB and RS-232C interface are equipped as standard accessories


Brand: Micronix
CAMERA ANECOICA ECRANATA ELECTROMAGNETIC MICRONIX TAURUS MY1510/ MY1520/ MY1530

• High quality and reliability the testing and measuring instruments manufacturer offers
• Good cost-performance and short delivery time
• The electromagnetic anechoic box that covers the inside of the shield box with an radio wave absorber


Brand: Micronix
CAMERA ANECOICA ECRANATA ELECTROMAGNETIC CU VIZOR DE STICLA MICRONIX MY1520SW

• Large shield window for looking in anechoic shield box
• Shield characteristic >60 dB @ 2.4 GHz
• Shading cover for measuring illumination of luminance
• Several interfaces


Brand: Micronix
ANALIZOR DE SPECTRU PORTABIL 50 KHZ..3.3 GHZ/ 8.5 GHZ MICRONIX MSA400

• 50kHz …3.3 GHz Frequency Range(model MSA438)
• 50kHz …8.5 GHz Frequency Range(model MSA458)
• Compact and lightweight 1.8kg
• Large and color TFT display 5.7 inches, 640x480 dots and color LCD
• Four hours battery operation
• USB memory & communication
• Average noise level -127dBm


Brand: Micronix
CUTIE ANECOICA ECRANATA CU ABSORBTIE RADIO PENTRU GSM MICRONIX M8661B

• Equipped with the radio wave absorber covering 800MHz/900MHz frequency band
• Optimum for wireless system test for technical standard, receiving sensitivity test and simple
• EMC test of a wide frequency band


Brand: Micronix
INCINTE ANECOICE ECRANATE ELECTROMAGNETIC PENTRU TESTARE EMI MICRONIX MY5310/ MY5410

• These two models using the ferrite tile as the radio wave absorber are optimum for EMI test
• The compact and broadband antenna by our own development is prepared as option
• Capable of EMI test in frequency range 30MHz to 3GHz if upgraded to MR2300 system
