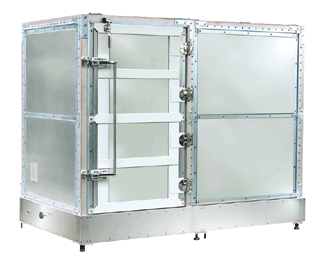

Incinte anecoice ecranate electromagnetic pentru testare EMI Micronix MY5310/ MY5410

Cod: Micronix MY5310/ MY5410

Brosura produs

PDF, 1.15 Mb

Descriere

These two models using the ferrite tile as the radio wave absorber are optimum for EMI test
The compact and broadband antenna by our own development is prepared as option
Capable of EMI test in frequency range 30MHz to 3GHz if upgraded to MR2300 system

Model	MY5310
Outside dimensions	1340(W) x 1210(H) x 1030(D)mm (excluding casters and projections)
Inside dimensions	1230(W) x 920(H) x 920(D)mm
Door opening dimensions	410(W) x 710(H)mm
Weight	approx. 460kg
Turntable dimension	220mm in diameter
Turntable load	10kg
Radio wave absorber	Ferrite tile structured double
Connector	Coaxial: N(J)@antenna out N(J)@for EUT D-sub: 25 pins
Power supply for EUT	AC250Vmax, three-pin plug
Shielding efficiency	more than 65dB
Absorption efficiency	more than 20dB@35MHz to 2.2GHz

Model	MY5410
Outside dimensions	2310(W) x 1790(H) x 1390(D)mm (excluding casters and projections)
Inside dimensions	2140(W) x 1450(H) x 1220(D)mm
Door opening dimensions	890(W) x 1490(H)mm
Weight	approx. 1000kg
Turntable dimension	756mm in diameter
Turntable load	100kg
Radio wave absorber	Ferrite tile structured double
Connector	Coaxial: N(J)@antenna out N(J)@for EUT D-sub: nothing
Power supply for EUT	AC250Vmax, three-pin plug
Shielding efficiency	more than 50dB
Absorption efficiency	more than 20dB@35MHz to 2.2GHz

Optiuni recomandate

Broadband antenna (MAN101/102)

Frequency range	:30MHz to 3GHz
Polarization	:Linear
Impedance	:50ohm (nominal)
Antenna type	:Transformational Y character monopole antenna original name by us

	MAN101	MAN102
Element dimensions	578(W) x 332(H) x 500(D)mm	628(W) x 332(H) x 500(D)mm
Ground plate dimensions	700(W) x 900(D)mm	800(W) x 950(D)mm
Weight	approx. 5.3kg (including ground plate)	approx. 6.0kg (including ground plate)
