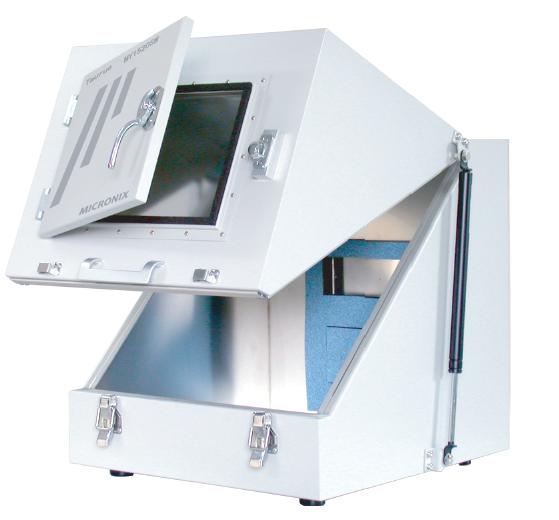

Camera anecoica ecranata electromagnetic cu vizor de sticla Micronix MY1520SW

Cod: Micronix MY1520SW




Brosura produs PDF, 0.75 Mb


Descriere

  • Large shield window for looking in anechoic shield box
  • Shield characteristic >60 dB @ 2.4 GHz
  • Shading cover for measuring illumination of luminance
  • Several interfaces


Model MY1520SW

Outside dimensions

Inside dimensions
Weight approx.
Shielding characteristics
Reflection loss
Shield window dimensions
Connectors
I/F Module installation capacity

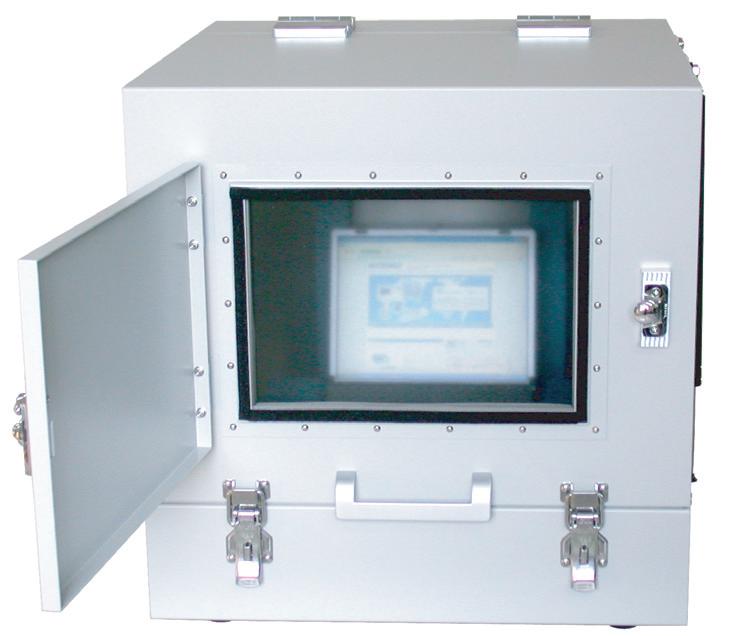

Large shield window is equipped normally for looking info an anechoic box

520(W)×520(D)×520(H)mm

460(W)×460(D)×460(H)mm
10kg (without I/F Module)
more than 60dB @ 2.4GHz
more than 20dB @ ? 2.4GHz, MYA-75
300(W)×200(H)mm
2pcs of SMA @ back
2 module @ back



Optiuni recomandate

Small size (MY1510)
I/F Module
Medium size (MY1520)
I/F Module
Wooden table
Radio wave absorber(MYA-77)
Radio wave absorber(MYA-79)
Large size (MY1530)
I/F Module
Wooden table
Turn table unit
Radio wave absorber(MYA-75)
Radio wave absorber(MYA-79)



The I/F module is a module on which AC supply, DC supply, LAN, USB, SMA, BNC, N, Triaxial and/or D-sub connectors are mounted. All of the I/F modules are common to Taurus series.



Option

Mounted connectors

IFM1

IFM1 AC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc)

IFM2

IFM2 AC(1pc), LAN(2pcs), USB(2pcs), D-sub9pin(1pc)

IFM3

AC(1pc), LAN(2pcs), USB(2pcs), D-sub25pin(1pc)

IFM4

DC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc), D-sub25pin(1pc)

IFM5

SMA(2pcs), BNC(2pcs), N(2pcs), Triaxial(2pcs)
