Brand: Micronix

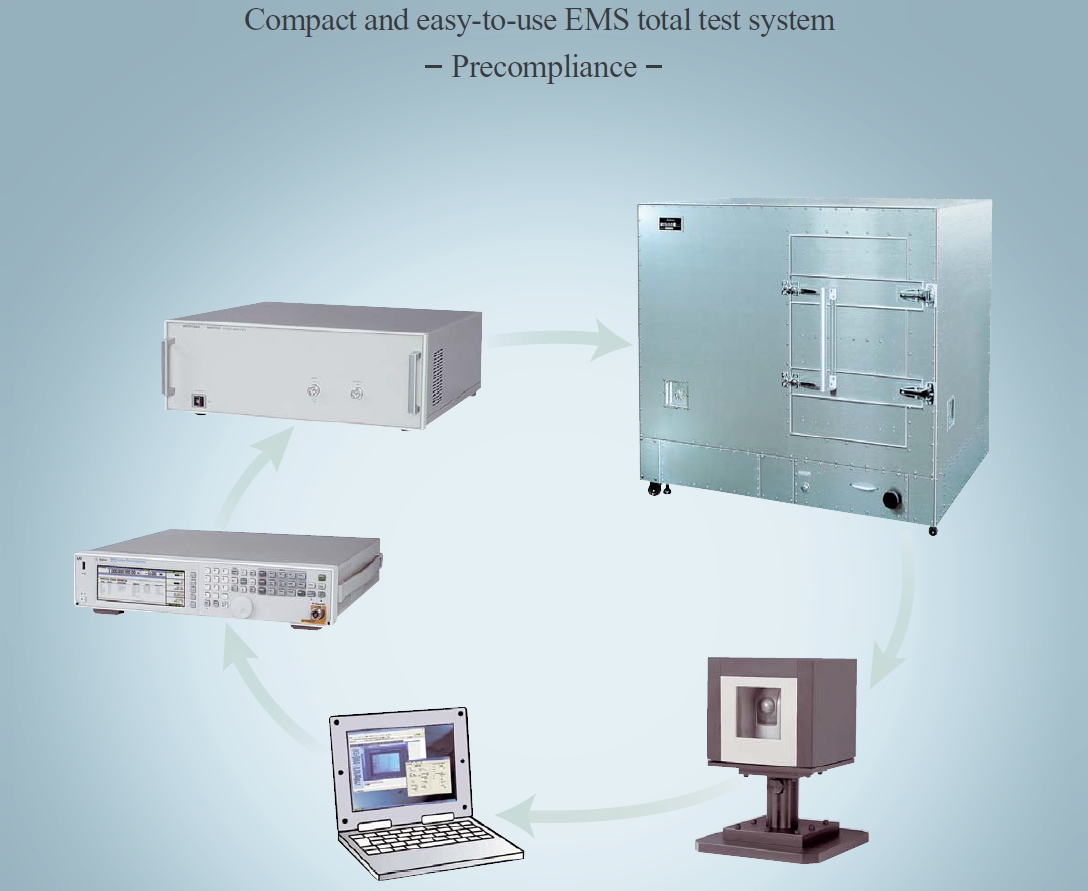

Sistem testare EMS Micronix MR2350

Cod: Micronix MR2350 System



Brosura produs PDF, 0.43 Mb

Descriere

  • The electric field strength of 1, 3, 10V/m and moreover optionally 1 to 10V/m can be
  • generated
  • The malfunction of the EUT by the electromagnetic radiation can be observed by a camera put in the anechoic box. The image is displayed on the PC screen.
  • The antenna, whose dimensions are as small as 578(W)??401(H)?? 250(D)mm and
  • whose bandwidth is as broad as 30MHz to 3GHz, was developed by MICRONIX itself
  • MR2400 combining the EMI test system MR2300 and the EMS test system MR2350
  • makes the EMC (EMI+EMS) test possible.
  • One PC controls all of applications such as the EMI test, the EMS test, the EUT camera monitor and the electric turntable (option)
  • This option is an electric turntable of 220mm in diameter and 15kg in load. And this is controlled by the PC
