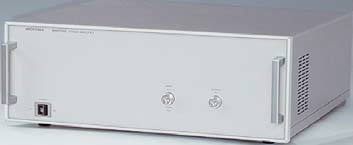

Amplificator de putere RF 30..1000 MHz Micronix MAP202

• Equipped with the radio wave absorber covering 800MHz/900MHz frequency band
• Optimum for wireless system test for technical standard, receiving sensitivity test and simple
• EMC test of a wide frequency band



• The first EMI total test system in the world
• Compact and broadband antenna by our own development
• Small and large anechoic boxes
• Calibration of the entire system
• Conformity to regional and international standards
• Low system price



• Optimum for testing W-CDMA, CDMA, GSM, PDC, PHS, ETC and wireless systems
• A receiving antenna of your choice will be mounted
• simple type shielding box that may be used on a desk
• triple structure, i.e., radio wave absorber, copper plate and aluminum plate
• covers the frequency band of low frequency through 18GHz
• acrylic resin table for placing a test sample is provided, and this structure permits easy mounting of an optional receiving antenna



• These are electromagnetic anechoic box using radio wave absorber of ferrite and ranging 50 to 800MHz
• Outside dimensions : 915 (W) × 650 (H) × 585 (D) mm
• Inside dimensions : 810 (W) × 506 (H) × 506 (D) mm
• Weight : type approx. 165kg
• Capable of customizing



• The conducted emission discharged through the power supply line is measured by using the line impedance stabilization network (LISN).
• To measure the disturbance noise with reproducibility, the LISN, which makes constant the impedance of the power source observed from EUT, is inserted in the power supply line.
• The output impedance of the disturbance noise to be measured is 50 ohms.



• High quality and reliability the testing and measuring instruments manufacturer offers
• Good cost-performance and short delivery time
• The electromagnetic anechoic box that covers the inside of the shield box with an radio wave absorber



• The electric field strength of 1, 3, 10V/m
• The malfunction of the EUT by the electromagnetic radiation can be observed
• One PC controls all of applications such as the EMI test, the EMS test, the EUT camera monitor and the electric turntable (option)



• A model equiping with automatic conveyer for mass production line.
• Outside dimensions : 922 (W) × 794 (H) × 731 (D) mm
• Inside dimensions : 801 (W) × 610 (H) × 610 (D) mm
• Weight : approx. 94kg (include automatic conveyer)
• Capable of customizing



• Type equipping with exhaust fan and intake
• As the temperature rise in box is suppressed, the ideal test environment is provided even during long time operation



• 1mHz to 20MHz / 30Vp-p (at open load)
• Highly accurate and stable frequency due to synthesized method
• Arbitrary waveform generator (10Mwords / s, 12bits, 128kwords)
• BURST / GATE, frequency sweep (linear and logarithmic) and VCF functions
• Communication (RS-232C, GP-IB [optional] )
