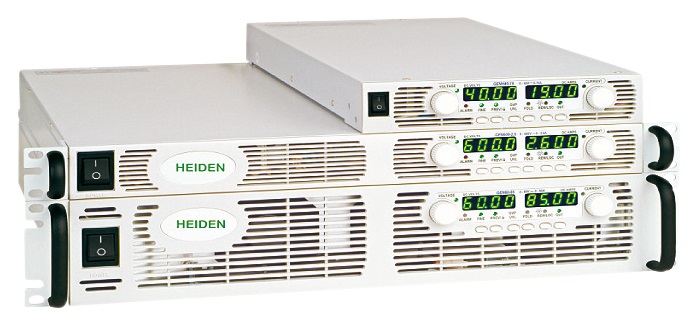

Sursa liniara de tensiune 750W~15kW TDK Lambda Genesys

Cod: TDK Lambda Genesys

Brosura produs

PDF, 3.39 Mb

Descriere

The Genesys series from TDK Lambda is characterized by particularly outstanding technology and excellent value for money. This series is available in various versions up to 600V and up to 1000A. With the standard RS-485 interface up to 31 devices can be connected together.

Very compact design
Wide input range
Active PFC (typically 99%)
Built-in RS232/RS485
16-Bit AD/DA converters
Parallel operation (active current sharing)
analog interface
opt. isolated analog interface
optional IEEE488 interface
Optional USB and LAN interface
LabView Drivers

The 750 Watt units are also available in half 19" width

Model

Voltage(V)

Current(A)

Power

G07(H)-006

0 � 6 V

0 � 100 A

750 W (1/2 1 U)

G07(H)-012

0 � 12,5 V

0 � 60 A

750 W (1/2 1 U)

G07(H)-020

0 � 20 V

0 � 38 A

750 W (1/2 1 U)

G07(H)-030

0 � 30 V

0 � 25 A

750 W (1/2 1 U)

G07(H)-040

0 � 40 V

0 � 19 A

750 W (1/2 1 U)

G07(H)-060

0 � 60 V

0 � 12,5 A

750 W (1/2 1 U)

G07(H)-080

0 � 80 V

0 � 9,5 A

750 W (1/2 1 U)

G07(H)-100

0 � 100 V

0 � 7,5 A

750 W (1/2 1 U)

G07(H)-150

0 � 150 V

0 � 5 A

750 W (1/2 1 U)

G07(H)-300

0 � 300 V

0 � 2,5 A

750 W (1/2 1 U)

G07(H)-600

0 � 600 V

0 � 1,3 A

750 W (1/2 1 U)

G07-006

0 � 6 V

0 � 100 A

750 W (1 U)

G07-012

0 � 12,5 V

0 � 60 A

750 W (1 U)

G07-020

0 � 20 V

0 � 38 A

750 W (1 U)

G07-030

0 � 30 V

0 � 25 A

750 W (1 U)

G07-040

0 � 40 V

0 � 19 A

750 W (1 U)

G07-060

0 � 60 V

0 � 12,5 A

750 W (1 U)

G07-080

0 � 80 V

0 � 9,5 A

750 W (1 U)

G07-100

0 � 100 V

0 � 7,5 A

750 W (1 U)

G07-150

0 � 150 V

0 � 5 A

750 W (1 U)

G07-300

0 � 300 V

0 � 2,5 A

750 W (1 U)

G07-600

0 � 600 V

0 � 1,3 A

750 W (1 U)

G15-006

0 � 6 V

0 � 200 A

1500 W (1 U)

G15-012

0 � 12,5 V

0 � 120 A

1500 W (1 U)

G15-020

0 � 20 V

0 � 76 A

1500 W (1 U)

G15-030

0 � 30 V

0 � 50 A

1500 W (1 U)

G15-040

0 � 40 V

0 � 38 A

1500 W (1 U)

G15-060

0 � 60 V

0 � 25 A

1500 W (1 U)

G15-080

0 � 80 V

0 � 19 A

1500 W (1 U)

G15-100

0 � 100 V

0 � 15 A

1500 W (1 U)

G15-150

0 � 150 V

Optiuni recomandate

Options	Descriptions
PSINK Option	not for all versions
LAN	LAN Interface
IEEE	GPIB/IEEE Interface
USB	USB Interface
GENH/RM	Rack Mounting Kit for Gxx (H) Series horizontal
GENH/MO	Rack Mounting Kit for Gxx (H) Series vertiakl
