The HEA-T PS-8000 series devices are available with output voltages from 16V to 360V, currents from 4A to 60A and power from 320W to 1500W. The output is at the T-models on the front side of the devices.

Wide-range input and active PFC
Operating modes: CV, CC and CP from 1 kW
OVP and OTP
programmable, remote-controlled
various interfaces such as IEEE488, RS-232, USB, CAN and LAN on request

Order Number	Voltage (V)	Current (A)	kW
HEA-PS8016-20T	0 � 16 V	0 � 20 A	0,3
HEA-PS8032-10T	0 � 32 V	0 � 10 A	0,3
HEA-PS8065-05T	0 � 65 V	0 � 5 A	0,3
HEA-PS8032-20T	0 � 32 V	0 � 20 A	0,6
HEA-PS8065-10T	0 � 65 V	0 � 10 A	0,6
HEA-PS8160-04T	0 � 160 V	0 � 4 A	0,6
HEA-PS8080-40T	0 � 80 V	0 � 40 A	1
HEA-PS8360-10T	0 � 360 V	0 � 10 A	1
HEA-PS8080-60T	0 � 80 V	0 � 60 A	1,5
HEA-PS8360-15T	0 � 360 V	0 � 15 A	1,5

Optiuni recomandate

Options	Descriptions
HEA-PS-IF-CAN	CAN Interface
HEA-PS-IF-LAN	LAN Interface
HEA-PS-IF-GPIB	GPIB/IEEE Interface
HEA-PS-IF-PB	Profibus Interface
HEA-PS-IF-RS232	RS232 Interface
HEA-PS-IF-USB	USB Interface
HEA-PS-HS	High Speed

Alte produse HEIDEN

Brand: Heiden

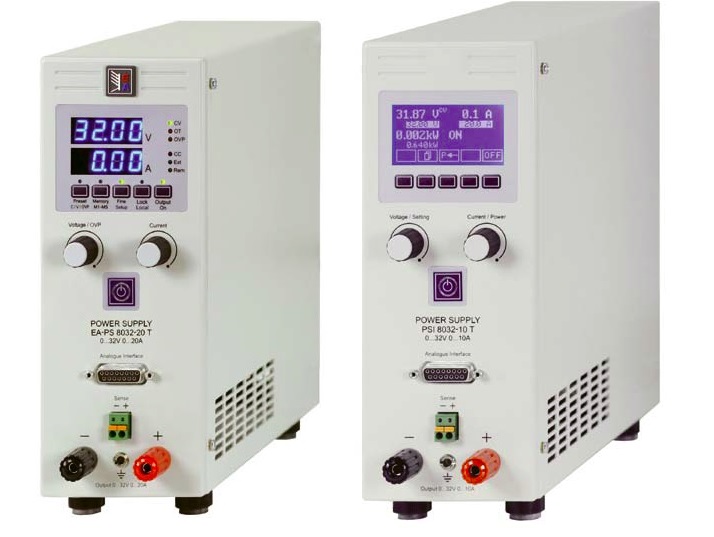

SURSA DE TENSIUNE REGLABILA 0.3~1.5KW CU AUTOSCALARE HEIDEN HEA-PS-8000-T

• Power: 0.3kW, 0.6kW, 1kW or 1.5kW
• DC Voltage: 0 up to 360V
• DC Current: 0 up to 60A
• Wide-range input and active PFC
• Operating modes: CV, CC and CP from 1 kW
• OVP and OTP
• programmable, remote-controlled
• various interfaces such as IEEE488, RS-232, USB, CAN and LAN on request

Brand: Heiden

SURSA DE TENSIUNE DC PUTERE 3~10KW HEIDEN HE-LAB/SMS

• Power: 3kW, 4kW, 5kW, 6kW, 8kW or 10kW models
• DC Voltage: 0 up to 1200V
• DC Current: 0 up to 500A
• Efficiency up to 94 %
• Compact Design
• Active and Parallel connectable
• Digital Interfaces IEEE 488, RS232/485, USB and LAN (optional)
• Datalog function

Brand: Heiden

SURSA DC MODULARA DE CURENTI INALTI HEIDEN 1140

• DC Voltage: 0 up to 30V
• DC Current: 0 up to 6000A
• Modular power
• at any time, can be enhanced
• Digital control
• extensive interfaces: analog, RS-484, RS-485, TCP / IP, Profibus
• novel encapsulated air cooling system
• individual voltages on request

Brand: Heiden

SURSA DE PUTERE DC PENTRU TESTARE FOTOVOLTAICA 10~15KW HEIDEN HEA-PS-8000-3U HS PV

• specially adapted for the photovoltaics
• Power: 1.5kW, 3kW, 6kW or 9kW
• DC Voltage: 0 up to 1500V
• DC Current: 0 up to 510A
• Wide-range input and active PFC
• Operating modes: CV, CC and CP from 1 kW
• OVP and OTP
• programmable, remote-controlled exchangeable interface boards as IEEE488, RS-232, USB, CAN, Profibus and LAN

Brand: Heiden

SURSA DE INALTA TENSIUNE PANA LA 70KV HEIDEN HE-XPSX

• AC mains supplied, modular HV PS in the range of 300 W to 800 W
• High voltages from 1 kV up to 70 kV
• Extraordinary control characteristics for output voltage and current.
• C-charger (KPS and LPS series) with very low output voltage overshoot
• State-of-the-art resonant converter topology, low EMI

Brand: Heiden

SURSA DE TENSIUNE REGLABILA 0.3~1.5KW CU AUTOSCALARE HEIDEN HEA-PS-8000-DT

Brand: Heiden

SURSA DE PUTERE DC 3.3~15KW CU AUTOSCALARE HEIDEN HEA-PS-8000-3U

• Power: 1.5kW, 3kW, 6kW or 9kW
• DC Voltage: 0 up to 1500V
• DC Current: 0 up to 510A
• Wide-range input and active PFC
• Operating modes: CV, CC and CP from 1 kW
• OVP and OTP
• programmable, remote-controlled exchangeable interface boards as IEEE488, RS-232, USB, CAN, Profibus and LAN

Brand: Heiden

SURSA DE PUTERE AC CURENT ALTERNATIV MONO SI TRIFAZATA HEIDEN HE-ACS

• Power range from 250 VA to 10 kVA
• Output voltage from 0-700 V AC and 1000 V DC per phase
• Variable frequency from 1 to 2000 Hz,
• Wave forms sine, triangle and rectangle
• Maximum current up to 80 A per phase
• Simulation of 1 or 3 phases

Brand: Heiden

SURSA DE ALIMENTARE DC REGLABILA 1.5~9KW CU AUTOSCALARE HEIDEN HEA-PS-9000

• Power: 1.5kW, 3kW, 6kW or 9kW
• DC Voltage: 0 up to 750V
• DC Current: 0 up to 300A
• Operating modes: CV, CC and CP
• programmable, remote-controlled
• 19 "2 to 6 U
• optional as a source-sink
• optional with water cooling
• optional with CAN, Ethernet, IEC (IEEE488/RS232), USB, USB cable

Brand: Heiden

SURSA DE ALIMENTARE DC REGLABILA 0.6~3KW CU AUTOSCALARE HEIDEN HEA-PS-8000-2U

• Power: 0.6kW, 1kW, 1.5kW or 3kW
• DC Voltage: 0 up to 720V
• DC Current: 0 up to 120A
• Wide-range input and active PFC
• Operating modes: CV, CC and CP from 1 kW
• OVP and OTP
• programmable, remote-controlled
• exchangeable interface boards as IEEE488, RS-232, USB, CAN, Profibus and LAN on request
