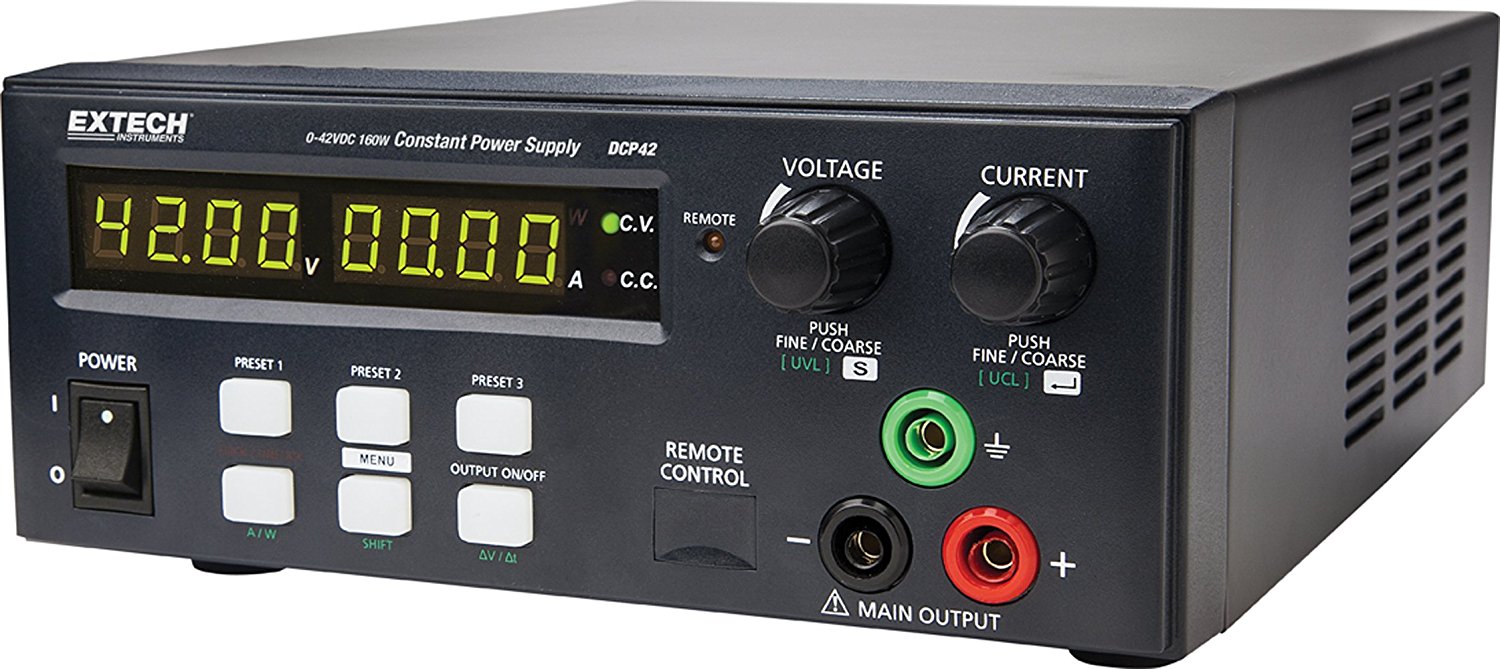

Extech DCP42 Sursa de tensiune reglabila simpla 160W

Cod: Extech DCP42




Brosura produs PDF, 0.26 Mb

Descriere

Single Output Continuous Switching Power Supply with USB

DCP42 is a 160W Switching Power Supply. Single Output Continuous Switching Power Supply with USB offers high efficiency electrical power conversion for greater energy conservation and lighter weight. Complete with power cord, software, and USB cable. Software includes DC ramp and waveform generator.



Features:

  • Constantly calculates and adjusts the Voltage and Current limit points according to available maximum power (160W)
  • At maximum current (10A), voltage is limited to 16V
  • At maximum voltage (42V), current is limited to 3.8A
  • Dual action rotary encoder control with push knob for fine and coarse tuning
  • Remote control for Programming, Output Voltage/Current, and ON/OFF using supplied software, driver, and USB
  • Three on-board user-defined Voltage/Current presets
  • Store 20 presets with up to 999 cycles each on a PC via USB and supplied Software
  • Software also includes DC Ramp and Waveform Generator
  • Complete with power cord, software, and USB cable
