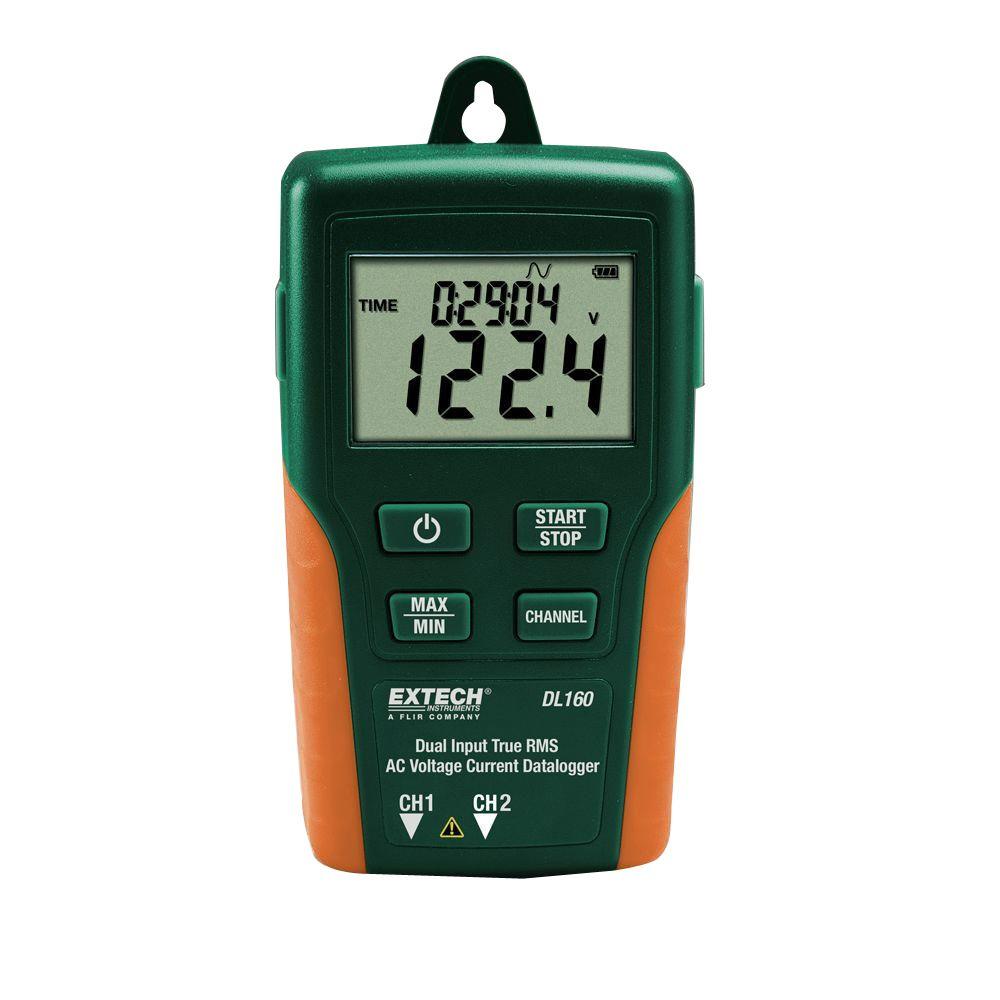

Extech DL160 Inregistrator Datalogging cu 2 canale Tensiuen si Curent AC True RMS

Cod: Extech DL160

Brosura produs

PDF, 0.27 Mb

Descriere

Datalog up to 256,000 readings with user programmable sample rate

The DL160 is a Dual Input True RMS AC Voltage/Current Data logger. Simultaneously data log 2 channels of up to 256,000 readings of TRMS AC Voltage (600V) or Current (200A) or one AC Voltage and one AC Current input with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, and min/max. Readings can be downloaded to your PC via the USB interface. Featuring Normal, Peak, and Capture (user specified trigger level) recording modes. Complete with 2 current clamps, two sets of test leads, 2 sets of alligator clips, software, USB cable, Universal AC Adapter, and 4 x AAA and 2 x CR2032 Batteries.

Features:

Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input
Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
LCD indicates time/date, current readings and Min/Max
Auto Power off and battery check
Complete with 2 Current and Voltage sensor modules, two sets of test leads and alligator clips, USB cable, Windows® software, AC Adaptor and four AAA batteries
