Extech MO265 Tester umiditate lemn metodele cu si fara intepare

Cod: Extech MO265




Brosura produs PDF, 0.31 Mb

Descriere

Non-invasive or contact moisture measurements

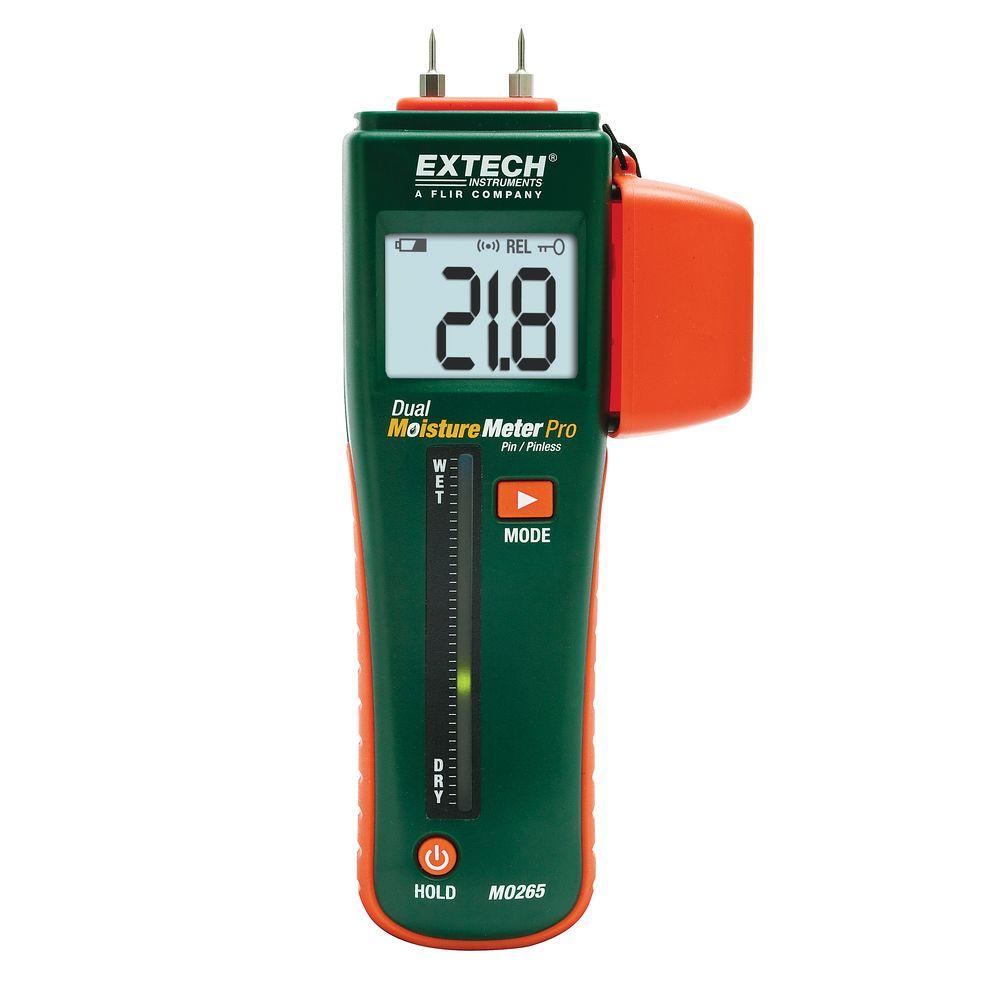

MO265 is a Combination Pin/Pinless Moisture Meter which measures Relative Moisture in wood and other building materials using pinless technology plus % of Moisture in sheetrock and other materials using direct pin method. Measurements are displayed on a digital LCD with backlighting and a tri-color LED bargraph. Pinless non-invasive measurement depth to 0.75 in. (22mm) below the surface. In addition, a remote pin probe is included to measure moisture in difficult to access places. Complete with 9-Volt battery, replacement pins, remote pin probe, protective cap, and pouch case.



Features:

  • Choice of measuring moisture in wood and other building materials with pinless technology or use traditional remote pin probe (included)
  • %WME (wood moisture equivalent) pin moisture reading
  • Relative pinless moisture reading for non-invasive measurement
  • Digital LCD readout with backlighting feature and tri-color LED bargraph
  • Quickly indicates the moisture content of materials
  • Pinless measurement depth to 0.75" (22mm) below the surface
  • Electro-magnetic sensing technology
  • Built-in calibration check
  • Replaceable measurement electrode pins
  • Includes remote pin probe to measure moisture in difficult to access areas
  • Complete with 9V battery, remote pin probe, replacement pins, protective cap, and hard carrying case
