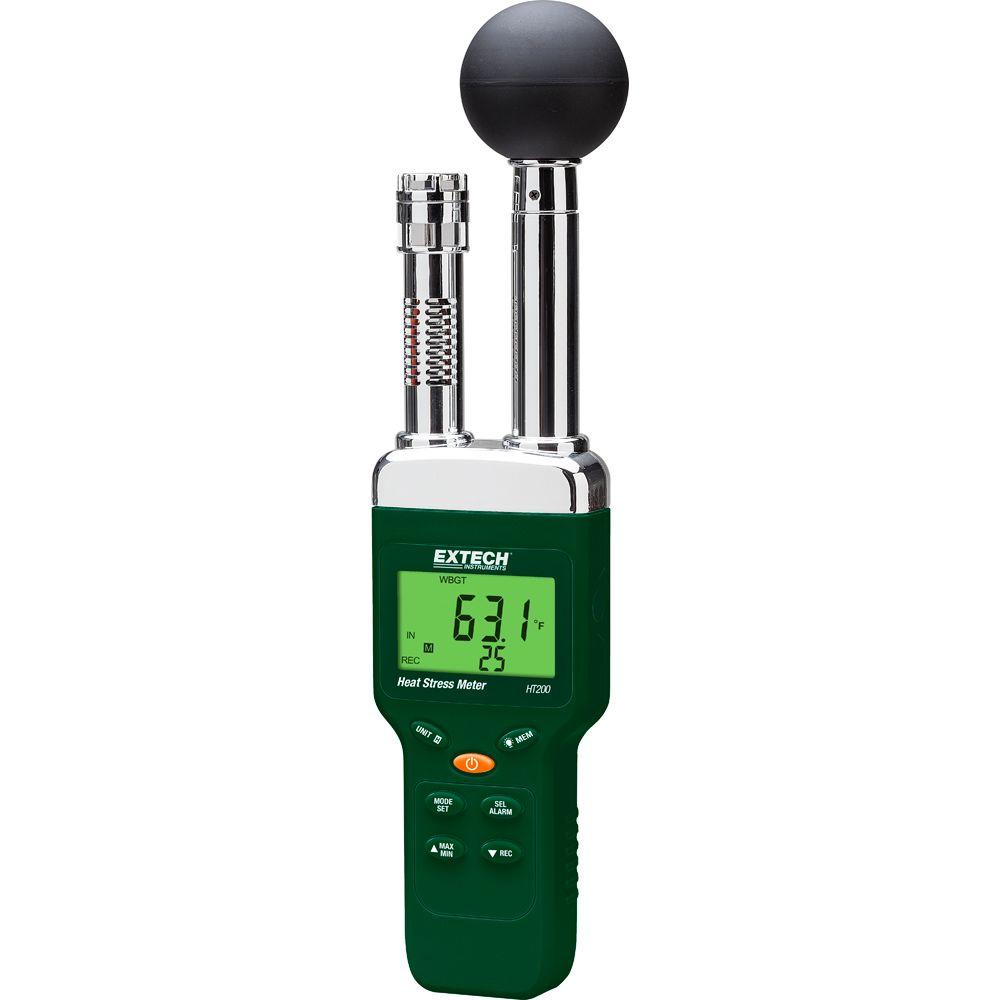

Extech HT200 Tester nivel strs termic (Wet Bulb Globe Temperature)

Cod: Extech HT200




Brosura produs PDF, 0.22 Mb

Descriere

Measures WBGT, Black Globe Temperature, Humidity, Air Temperature, Wet Bulb and Dew Point

The HT200 is a Heat Stress WGBT Meter which enables accurate measurements for Wet Bulb Globe Temperature (WGBT), Black Globe Temperature (TG), Humidity (%RH), Air Temperature (TA), Wet Bulb (WT) and Dew Point (DEW). Heat Stress Index measures how hot it feels when humidity is combined with temperature, air movement and radiant heat. Stores up to 50 readings. Comes with 9V battery, carrying case and AC adapter.



·         Meter accurately determines the Heat Stress level by factoring a combination of humidity, temperature, air movement, and direct solar radiation

·         Uses a capacitance sensor to accurately measure Wet Bulb Globe Temperature (WBGT), Black Globe Temperature (TG), Relative Humidity (%RH), Air Temperature (TA), Wet Bulb (WT) and Dew Point (DEW)

·         Black Globe Temperature (TG) monitors the effects of direct solar radiation on an exposed surface

·         In/Out function displays the WBGT value with or without direct sun exposure

·         WBGT high/low alarm settings

·         Min/Max, Data Hold, Auto Power Off, Low battery indicator

·         Complete with 9V battery and hard carrying case



Alte produse EXTECH

EXTECH VFM200: VOC/FORMALDEHYDE METER

• Backlit LCD displays TVOC (Total Volatile Organic Compound) and HCHO (Formaldehyde) concentrations simultaneously in real-time
• Built-in fast response, high accuracy fuel cell Formaldehyde sensor
• Two selectable units of measure (ppm, mg/m3)
• Adjustable audible and visible high/low alarms
• Auto Power Off
• Complete with rechargeable battery and Universal AC Adaptor/Charger (multi-plugs US, EU, UK, and AU)



EXTECH RH520A-220 INREGISTRATOR GRAFIC TEMPERATURA SI UMIDITATE

• Simultaneous numerical and graphical display of Humidity and Temperature readings, plus Time and Date
• Measures Humidity (10 to 95%RH) and Temperature (-20.0°F to 140.0°F) plus calculates Dew Point
• Basic accuracy 3%RH, 1.8°F/1°C
• Large dual graphical LCD displays with adjustable vertical and horizontal TAC resolution
• Internal memory records up to 49,000 data points and can be transferred to a PC via RS-232 serial port for further data analysis
• LCD indicates percentage of memory remaining
• Comes with 220V AC power supply



EXTECH LT300 LUXMETRU

• Wide range to 40,000Fc or 400,000 Lux with max resolution to 0.01 Fc/Lux
• Relative mode indicates change in light levels, peak mode captures highest reading
• Remote light sensor on 12" (30.5cm) coiled cable - expandable to 24" (61cm)
• Utilizes precision photo diode and color correction filter
• Large LCD display with analog bargraph
• Backlight for readings in low light levels
• Complete with 9V battery, light sensor with protective cover, protective holster, and soft case



EXTECH 480823 TESTER CAMP ELECTROMAGNETIC PE O SINGURA AXA FRECVENTE JOASE

• Measure electromagnetic field radiation levels from fans, electrical appliances, wiring, and power lines
• Large 1/2" LCD (1999 count) display of Electromagnetic Field (EMF) level in milliGauss or microTesla
• Accurate measurements to 4% over a measuring range of 0.1 to 199.9mGauss (0.01 to 19.99µTesla)
• ELF frequency bandwidth of 30Hz to 300Hz
• Single axis - sampling 2.5 times per second



EXTECH ET15 TESTER PRIZA

• Tests for faulty wiring in 3-wire receptacles: Correct, Open Ground, Open Neutral, Open Hot, Hot/Ground Reverse, Hot/Neutral Reverse
• Lights indicate circuit condition
• Standard North American 3-prong plug



EXTECH MA3018 CLESTE DE CURENT CORDON FLEXIBIL 3000A TRUE RMS AC

• Measure AC Current up to 3000A
• True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
• Flexible 18" (45.7cm) clamp jaw easily wraps around bus bars and cable bundles
• 7.5mm cable diameter fits into tight spaces and around large conductors
• Measures AC Current in three ranges
• 3000 count backlit LCD display



EXTECH DM220 MINI-MULTIMETRU CU DETECTOR DE TENSIUNE FARA CONTACT

• Large high contrast 4000 count LCD display
• Non-Contact Voltage detection identifies live circuits
• Built-in Flashlight
• Measures AC/DC Voltage, AC/DC Current and Resistance, Frequency and Duty Cycle
• Diode Test and Continuity Beeper



BOREOSCOP INSPECTII VIDEO EXTECH BR50

• 17mm camera diameter and 2.4" Color TFT LCD Monitor
• Four LED lamps with five brightness levels illuminate the viewed object
• Glare-free close-up field of view with 480 x 234 pixel display
• Automatically detects NTSC and PAL cameras



EXTECH EX810 CELSTE AMPERMETRIC 1000A AC CLAMP METER CU TERMOMETRU INFRAROSU

• Non-contact InfraRed Temperature measurements with laser pointer
• Peak hold captures inrush currents and Transients
• MultiMeter functions include AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, Diode, and Continuity
• 1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
• 4000 count backlit display
• Autoranging with manual range button



EXTECH 412400: MULTIFUNCTION PROCESS CALIBRATOR

• Source 0 to 24mA with 0.01mA resolution
• Measure 0 to 50mA (0.1mA resolution)
• Select Type K, J, or T thermocouple for precision calibrations in °F/°C or mV
• Output 0 to 1999mV or 0 to 10.00V
• Measure 0 to 19.99V
